GE PowerMark Gold 125-Amp 14-Spaces 24-Circuit Indoor Convertible Main Lug Load Center (Value Pack)

Ships from manufacturer
Saber's: Item # 71223219 | Model # TLM1212CCUGK
(0)
Special Order $94.98

Ships in 1-5 business days

This product is dispatched directly by the manufacturer. Please allow for additional processing.

Got questions?

Feel free to get in touch

Ask an expert

Video chat Chat Email +1 (915)-598-8598
The GE 125 Amp 14-Space 24-Circuit Main Lug Indoor Load Center Contractor Kit is pre-packaged with a selection of circuit breakers and ground bar. The UL-listed load center has holes rated 100% split neutral on each side that are compatible with #14-4 wire. The breaker box is a single-phase, 3-wire unit with a factory-installed main breaker. The center is designed and built for faster installation and a more dependable performance. This unit is compatible with GFCIs, AFCIs, Dual Function and standard circuit breakers.

  • Features a copper bus for increased conductivity

  • Galvanized box for rust resistance with a self-adjusting dead-front cover

  • Features full-length neutral bars for faster and easier wiring

  • Full-length neutral bars for faster and easier wiring and 100% split neutral holes on each side are rated for #14-4 wire

  • Single-phase, 3-wire, 120/240 VAC, 22,000 AIC rating

  • Compatible with GE THQL, THQP, GFCI and AFCI circuit breakers

  • ANSI certified and UL Listed

  • The warranty is one (1) year from first use or eighteen (18) months from delivery, whichever occurs first
  • Type Breaker Boxes
  • Vendor GE
  • Saber's Item # 71223219 | Model # TLM1212CCUGK
  • Barcode 783164610994

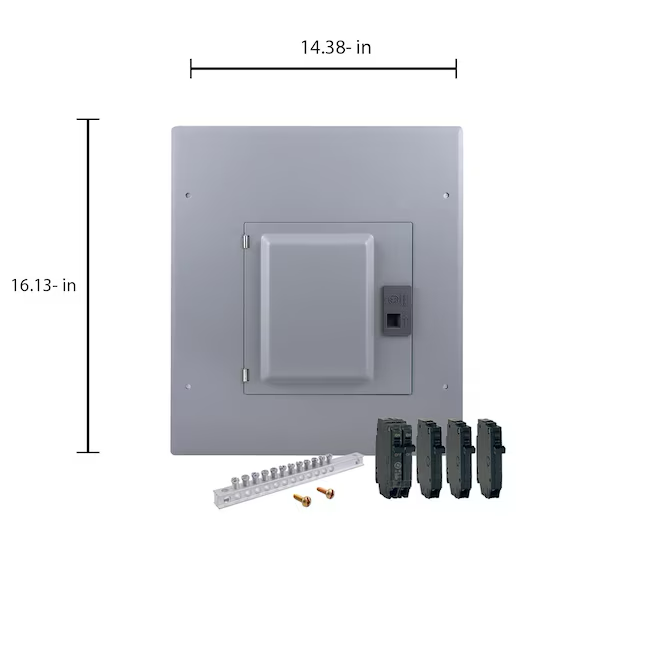

  • Dimensions Depth (Inches) 3.31 Width (Inches) 14.38 Height (Inches) 16.13

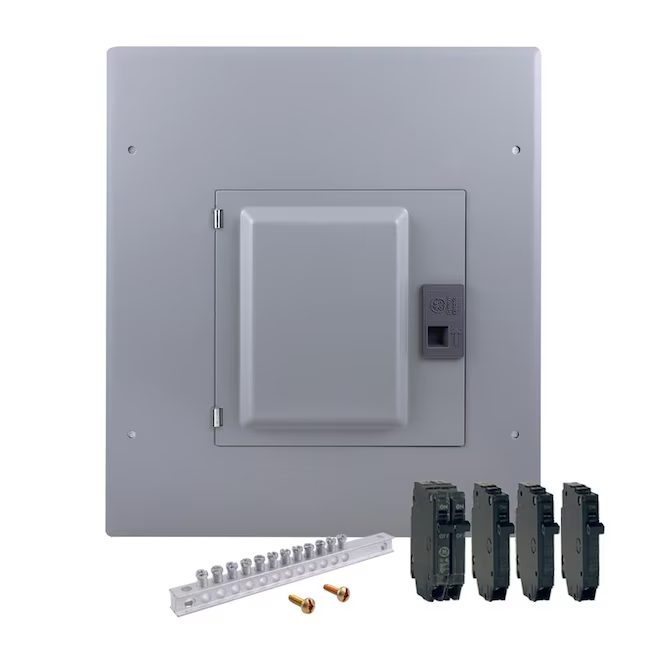

  • Features Value Pack Contents PowerMark Gold 125 Amp main lug indoor circuit breaker panel, 3 20 Amp single pole and 1 30 Amp double pole THQP 1/2 in. circuit breakers and a 12 hole Ground Bar Orientation Over/Under
  • Specifications Amperage 125 Paintable Yes Buss Bar Construction Copper Phase Type Single phase (120/240) Circuits 24 Plug-On Neutral No Cover Included Yes Series Name PowerMark Gold Feed-Through Lugs Yes Type Convertible main lug Ground Bar Installed Yes Usage Service entrance Manufacturer Color/Finish Gray Use Location Indoor Mounting Type Surface Value Pack Yes Number of Spaces 14
  • Weight 5 lb
  • Color/Finish Gray
  • Style Breaker Box
  • Returnable 30-Day
  • Warranty 1-year limited
  • Saber Sales Exclusive No
  • CA Residents Prop 65 Warning(s) No
