GE PowerMark Gold 100-Amp 22-Spaces 12-Circuit Indoor Main Breaker Load Center (Value Pack)

Ships from manufacturer
Saber's: Item # 71223225 | Model # TM1210CCUG1K
(0)
Special Order $89.98

Ships in 1-5 business days

This product is dispatched directly by the manufacturer. Please allow for additional processing.

Got questions?

Feel free to get in touch

Ask an expert

Video chat Chat Email +1 (915)-598-8598
This value kit includes 3 20 Amp Single-Pole THQL 1 in. Circuit Breakers and a Ground Bar. The load center includes a sturdy tin-plated copper buss bar and a galvanized box for increased durability and reliability. The one-piece interior removes and re-installs easily. Indoor NEMA 1 enclosure with combination surface/flush front. This load center is UL listed and ANSI Certified.

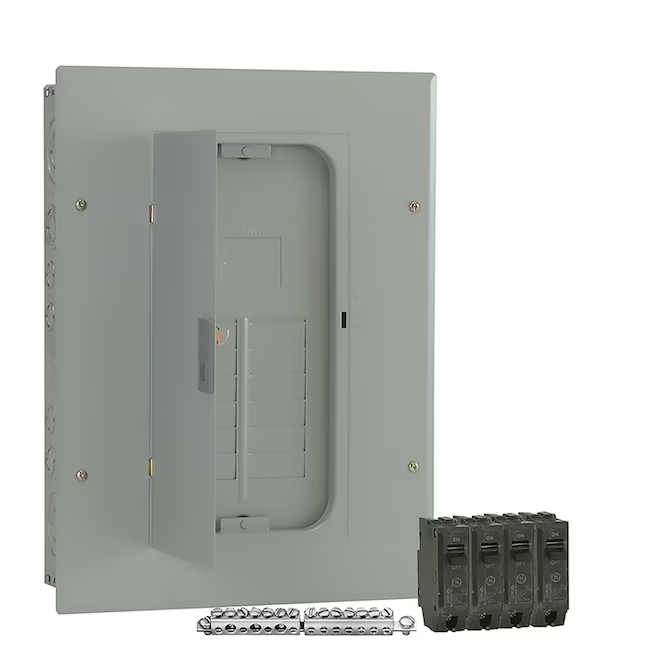

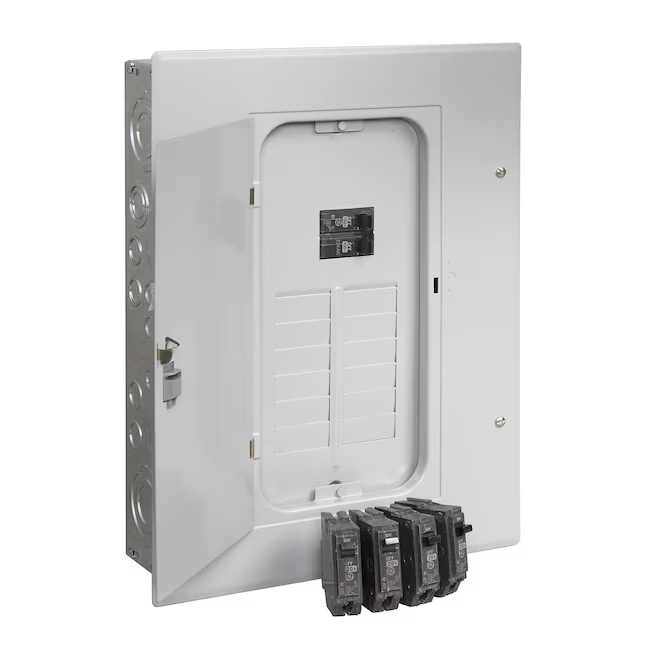

  • Value kit includes a PowerMark Gold 100 Amp main breaker indoor circuit breaker panel, 4 20 Amp single pole THQL 1 in circuit breakers and 1 equipment ground kit

  • Main breaker is factory installed

  • Galvanized box for rust resistance with a self-adjusting dead-front cover

  • Copper buss for increased conduction

  • Full-length neutral bars for faster and easier wiring and 100% split neutral holes on each side are rated for #14-4 wire

  • Single-phase, 3-wire, 120/240 VAC, 22,000 AIC rating

  • Compatible with GE THQL, THQP, GFCI and AFCI circuit breakers

  • Meets UL and ANSI safety requirements

  • The warranty is one (1) year from first use or eighteen (18) months from delivery, whichever occurs first
  • Type Breaker Boxes
  • Vendor GE
  • Saber's Item # 71223225 | Model # TM1210CCUG1K
  • Barcode 043481001357
  • Dimensions Depth (Inches) 3.375 Width (Inches) 14 Height (Inches) 16
  • Features Value Pack Contents GE PowerMark Gold TM1210CCU 100 Amp main breaker indoor load center, 4 20 Amp single pole THQL 1 in. circuit breakers and 1 equipment ground kit
  • Specifications Amperage 100 Orientation Over/Under Buss Bar Construction Copper Paintable Yes Circuits 12 Phase Type Single phase (120/240) Cover Included Yes Plug-On Neutral No Feed-Through Lugs No Usage Service entrance Ground Bar Installed Yes Use Location Indoor Mounting Type Combination Value Pack Yes Number of Spaces 22
  • Weight 5 lb
  • Color/Finish Gray
  • Style Breaker Box
  • Returnable 30-Day
  • Warranty 1-year limited
  • Saber Sales Exclusive No
  • CA Residents Prop 65 Warning(s) No
