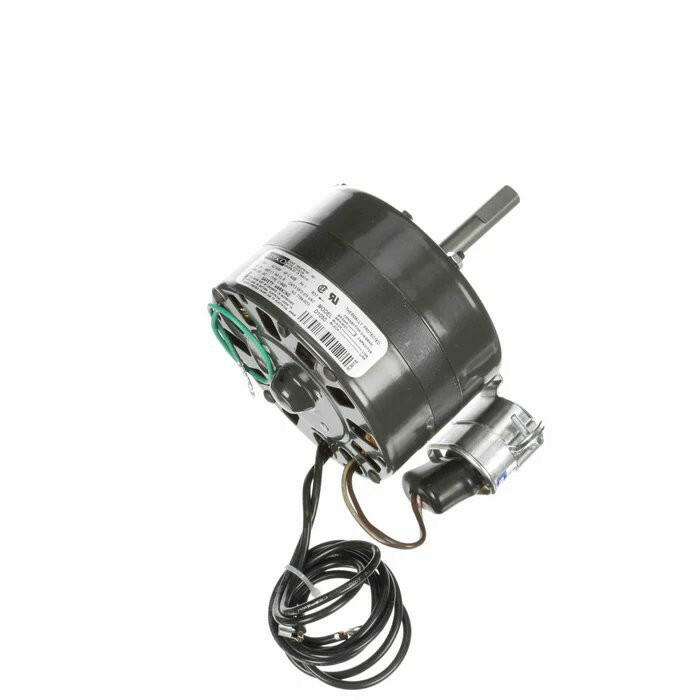

Fasco® D1050 5 Inch Diameter 1/8 HP Motor 230 Volts 1550 RPM

SKU D1050
Low stock, Ready to Ship
Original price $119.00 - Original price $119.00
Original price
$119.00 - $119.00
Current price $119.00

Fasco D1050 5 Inch Diameter 1/8 HP Motor 230 Volts 1550 RPM Replaces Trane KSP29DK1728S

  • OEM Direct Replacement Motor
  • 5" Diameter - 42 Frame
  • Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Supplied with Motor)
  • Thermally Protected
  • Enclosed Shaft End End-Frame and Shell, Open Lead End End-Frame, Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • 1/2" Diameter Shaft with Flat
  • 31" Leads with Terminal

General Specifications

UPC: 815585027768 Weight: 7.00 LB
Packaged Length: 6.63 IN Packaged Width: 5.13 IN
Packaged Height: 10 IN

Nameplate Specifications

Output HP: 1/8 Hp Output KW: 0.10 kW
Frequency: 50 Hz Voltage: 230 V
Current: 1.1 A Speed: 1550 rpm
Service Factor: 1 Phase: 1
Duty: Continuous Insulation Class: B
Frame: 42 Enclosure: Open Air Over
Thermal Protection: Automatic Ambient Temperature: 40 °C
UL: Recognized CSA: Y

Technical Specifications

Electrical Type: Permanent Split Capacitor Starting Method: Across The Line
Poles: 4 Rotation: Clockwise Shaft End
Mounting: Round Belly Band Drive End Bearing: Sleeve
Opp Drive End Bearing: Sleeve Frame Material: Na
Shaft Type: Flat Overall Length: 6.68 in
Shaft Diameter: 0.500 in Shaft Extension: 2.95 in

Direct replacement for

GE 5KSP29DK1728S
Trane KSP29DK1728S
Trane MOT-3438
