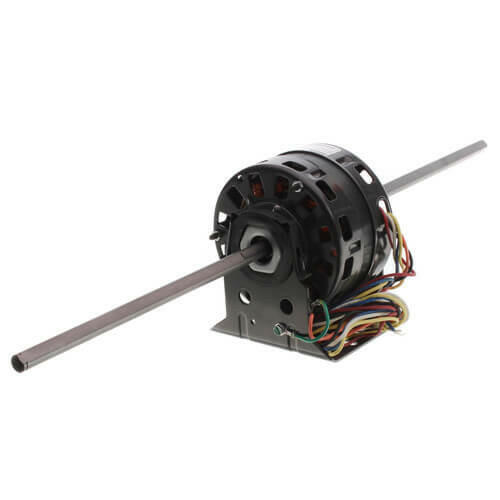

Fasco® D289 1/10-1/30-1/40-1/45-1/50 HP Fan Coil / Room Air Conditioner Motor 1050 RPM 5 Speed 115 Volts
Regular price
$169.00
Product Location:
Couldn't load pickup availability
Ships in 1 business day
Get quick delivery on all in-stock orders - Shipments processed within 1 business day.
Got questions?
Feel free to get in touch
Ask an expert
Earn [points_amount] when you buy this item.
Fasco D289 1/10-1/30-1/40-1/45-1/50 HP Fan Coil / Room Air Conditioner Motor 1050 RPM 5 Speed 115 Volts 42 Frame OAO
- Fan Coil - Air-Conditioning - Heating Unit Motor
- 5" Diameter - 42 Frame
- Shaded Pole
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Double Shaft with Flat
- 53" Leads with .5" Strip
- Resilient Base
- Downloads:
- D289 Data Pack
General Specifications
| UPC: | 815585029403 | Weight: | 10 LB |
| Packaged Length: | 6.13 IN | Packaged Width: | 6 IN |
| Packaged Height: | 25.75 IN |
Nameplate Specifications
| Output HP: | 1/10-1/30-1/40-1/45-1/50 Hp | Output KW: | 0.07 kW |
| Frequency: | 60 Hz | Voltage: | 115 V |
| Current: | 3.6/1.6/1.2/0.8/0.6 A | Speed: | 1050 rpm |
| Service Factor: | 1 | Phase: | 1 |
| Duty: | Air Over | Insulation Class: | B |
| Frame: | 42 | Enclosure: | Open Air Over |
| Thermal Protection: | Thermally Protected | Ambient Temperature: | 40 °C |
| UL: | Recognized | CSA: | Y |
| CE: | N |
Technical Specifications
| Electrical Type: | Shaded Pole | Starting Method: | Across The Line |
| Poles: | 6 | Rotation: | Counterclockwise Shaft End |
| Mounting: | Resilient Rings | Drive End Bearing: | Sleeve |
| Opp Drive End Bearing: | Sleeve | Frame Material: | Na |
| Shaft Type: | Flat | Overall Length: | 24.66 in |
| Shaft Diameter: | 0.500 in | Shaft Extension: | 10.75 in |
- Type Motors
- Vendor FASCO
- Saber's Item # 41223951 | Model # D289
- Weight 10 lb
- Material Steel
- Returnable 10-Day
- Warranty None
- Saber Sales Exclusive No
- CA Residents Prop 65 Warning(s) Yes
