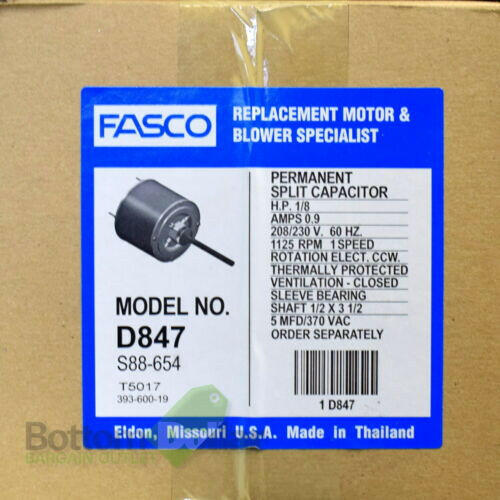

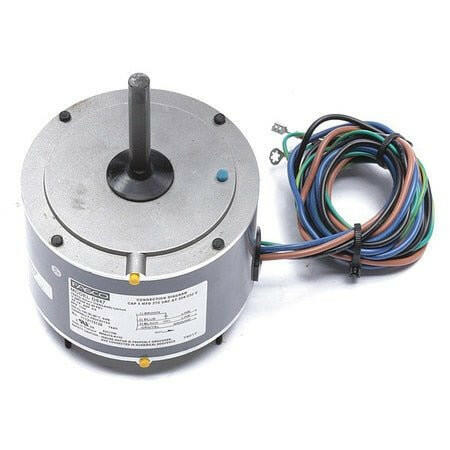

Fasco D847 OEM Replacement 1125RPM 208-230 Volts Replaces Carrier HC35VE230
- OEM Direct Replacement Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Totally Enclosed Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Shaft with Flat
- 54" Power Leads with Flag Terminal, 54" Capacitor Lead with Quick Connect Terminal
- Extended Studs Lead End, Belly Band
|Packaged Length:||5.63 IN||Packaged Width:||5.63 IN|
|Packaged Height:||15 IN|
|Output HP:||1/8 Hp||Output KW:||0.10 kW|
|Frequency:||60 Hz||Voltage:||208-230 V|
|Current:||0.63 A||Speed:||1125 rpm|
|Frame:||48||Enclosure:||Totally Enclosed Air Over|
|Thermal Protection:||Automatic||Ambient Temperature:||40 °C|
|Electrical Type:||Permanent Split Capacitor||Starting Method:||Across The Line|
|Poles:||6||Rotation:||Counterclockwise Shaft End|
|Mounting:||Extended Studs||Drive End Bearing:||Sleeve|
|Opp Drive End Bearing:||Sleeve||Frame Material:||Rolled Steel|
|Shaft Type:||Flat||Frame Length:||3.78 in|
|Shaft Diameter:||0.500 in||Shaft Extension:||3.46 in|
Direct replacement for
