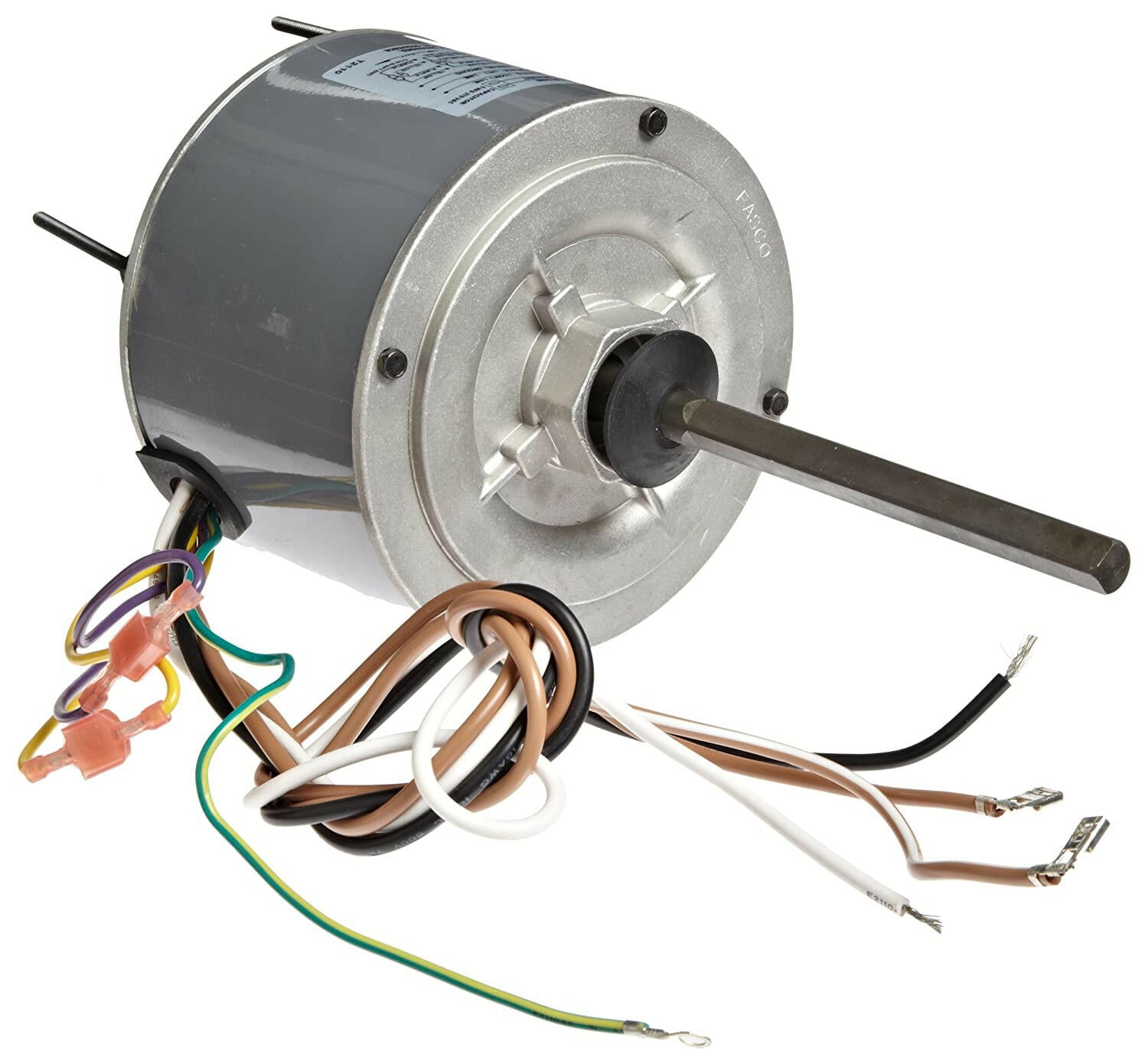

Fasco D7748 1/3 HP 5 5/8" Diameter Condenser Fan Motor 208-230 Volts 1075 RPM
- Condenser Fan Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Open Lead End, Enclosed Shell and Shaft End End-Frame, Air Over
- Class B Insulation, 60°C Ambient
- Ball Bearing
- 1/2" Diameter Shaft with Double Flat
- 27" Leads
- Extended Studs Lead End, Belly Band
|Packaged Length:||15 IN||Packaged Width:||5.63 IN|
|Packaged Height:||5.63 IN|
|Output HP:||1/3 Hp||Output KW:||0.25 kW|
|Frequency:||60 Hz||Voltage:||208-230 V|
|Current:||2.9 A||Speed:||1075 rpm|
|Thermal Protection:||Automatic||Ambient Temperature:||60 °C|
|Electrical Type:||Permanent Split Capacitor||Starting Method:||Across The Line|
|Mounting:||Extended Studs||Drive End Bearing:||Ball|
|Opp Drive End Bearing:||Ball||Frame Material:||Rolled Steel|
|Shaft Type:||Double Flat||Frame Length:||4.21 in|
|Shaft Diameter:||0.500 in||Shaft Extension:||6.5 in|
