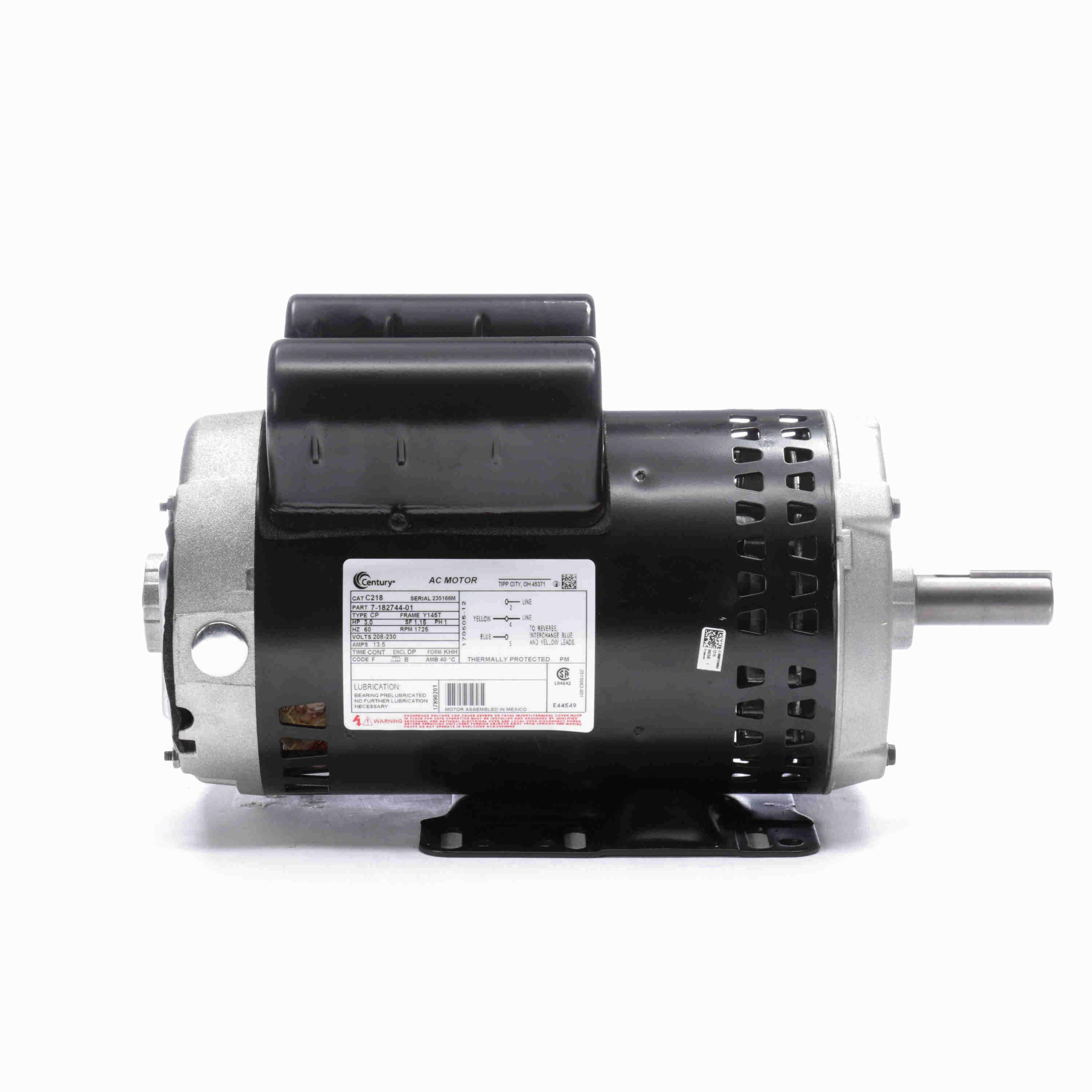

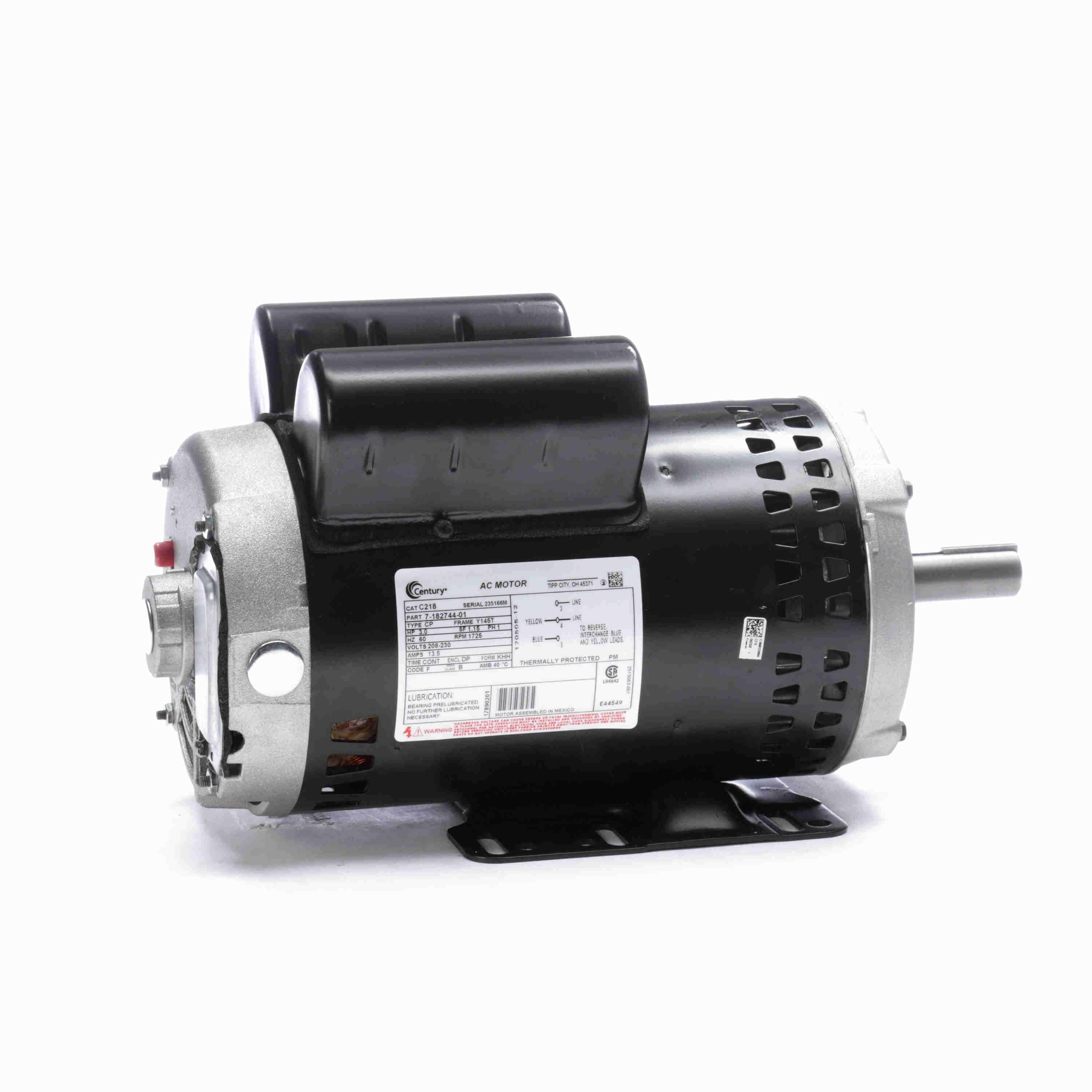

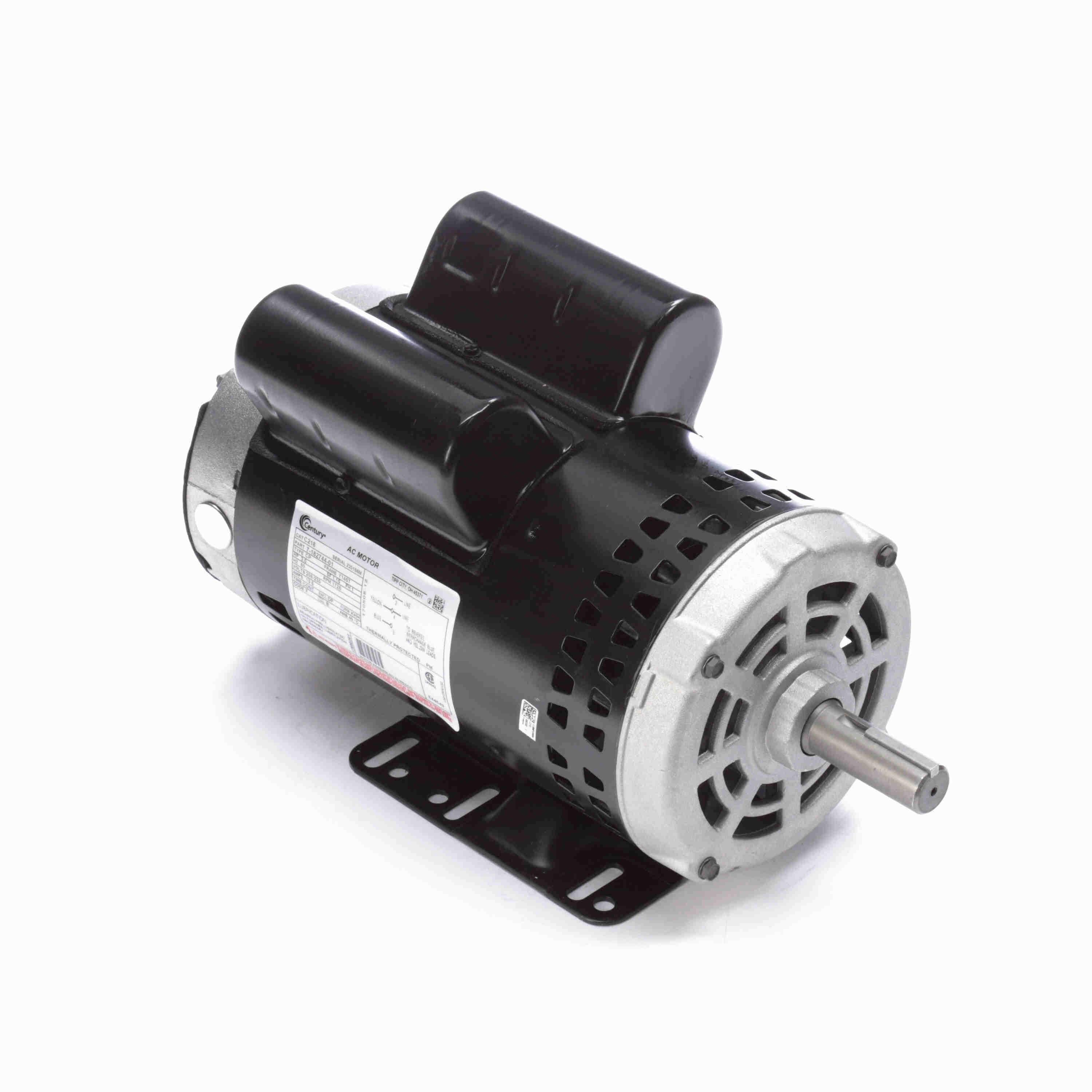

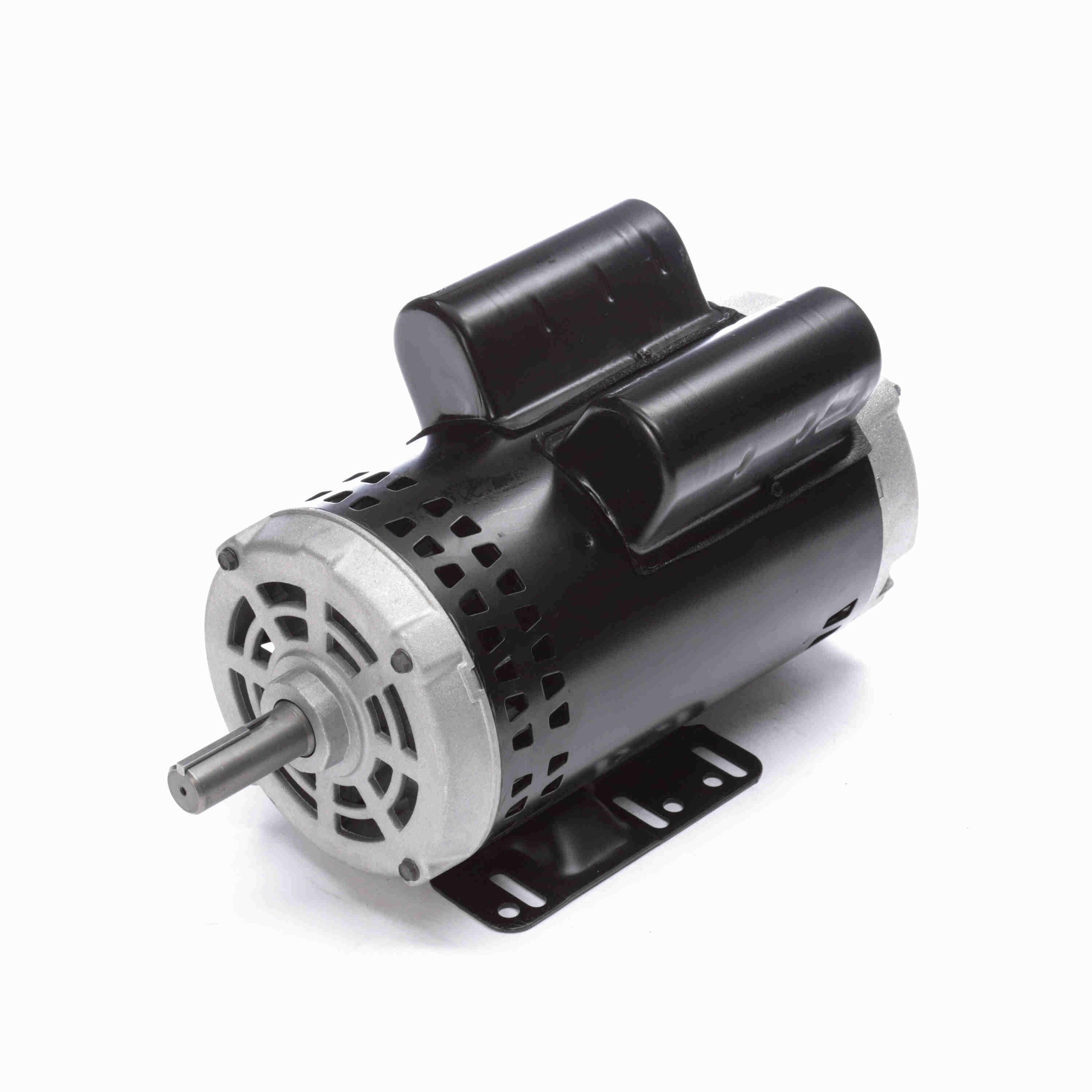

Century Pressure Washer Motor, 3.0 HP, 1 PH, 60 HZ, 208-230 V, 1800 RPM, Y145T FRAME, DP - C218
Regular price
$559.00
Product Location:
Couldn't load pickup availability
Ships in 1 business day
Get quick delivery on all in-stock orders - Shipments processed within 1 business day.
Got questions?
Feel free to get in touch
Ask an expert
- Thermal protection prevents dangerous overheating that causes motor failure.
- Heavy-duty, rolled steel construction ensures motor durability.
- Double-shielded bearings extend the service life of the motor.
- High service factor rating (as noted).
Nameplate Specifications
| Phase: | 1 | Output HP: | 3.0 Hp |
| Output KW: | 2.2 kW | Voltage: | 208-230 V |
| Speed: | 1725 rpm | Service Factor: | 1.15 |
| Frame: | Y145T | Enclosure: | Drip Proof |
| Thermal Protection: | Thermally Protected | Ambient Temperature: | 40 °C |
| Frequency: | 60 Hz | Current: | 13.5 A |
| Duty: | Continuous | Insulation Class: | B |
| UL: | Recognized | CSA: | Y |
Technical Specifications
| Electrical Type: | Capacitor Start, Capacitor Run, Single Or Dual Voltage | Starting Method: | Across The Line |
| Poles: | 4 | Rotation: | Reversible Counterclockwise |
| Mounting: | Rigid Base | Drive End Bearing: | Ball |
| Opp Drive End Bearing: | Ball | Frame Material: | Rolled Steel |
| Shaft Type: | Keyed | Overall Length: | 15.06 in |
| Frame Length: | 9.25 in | Shaft Diameter: | 0.875 in |
| Shaft Extension: | 2.31 in |
General Specifications
| UPC: | 786674015402 | Weight: | 49.00 LB |
| Packaged Length: | 19 IN | Packaged Width: | 10 IN |
| Packaged Height: | 9 IN | HTC: | 8501.40.6040 |
- Type Motors
- Vendor Century
- Saber's Item # 41223466 | Model # C218
- Material Steel
- Returnable 10-Day
- Warranty None
- Saber Sales Exclusive No
- CA Residents Prop 65 Warning(s) Yes
