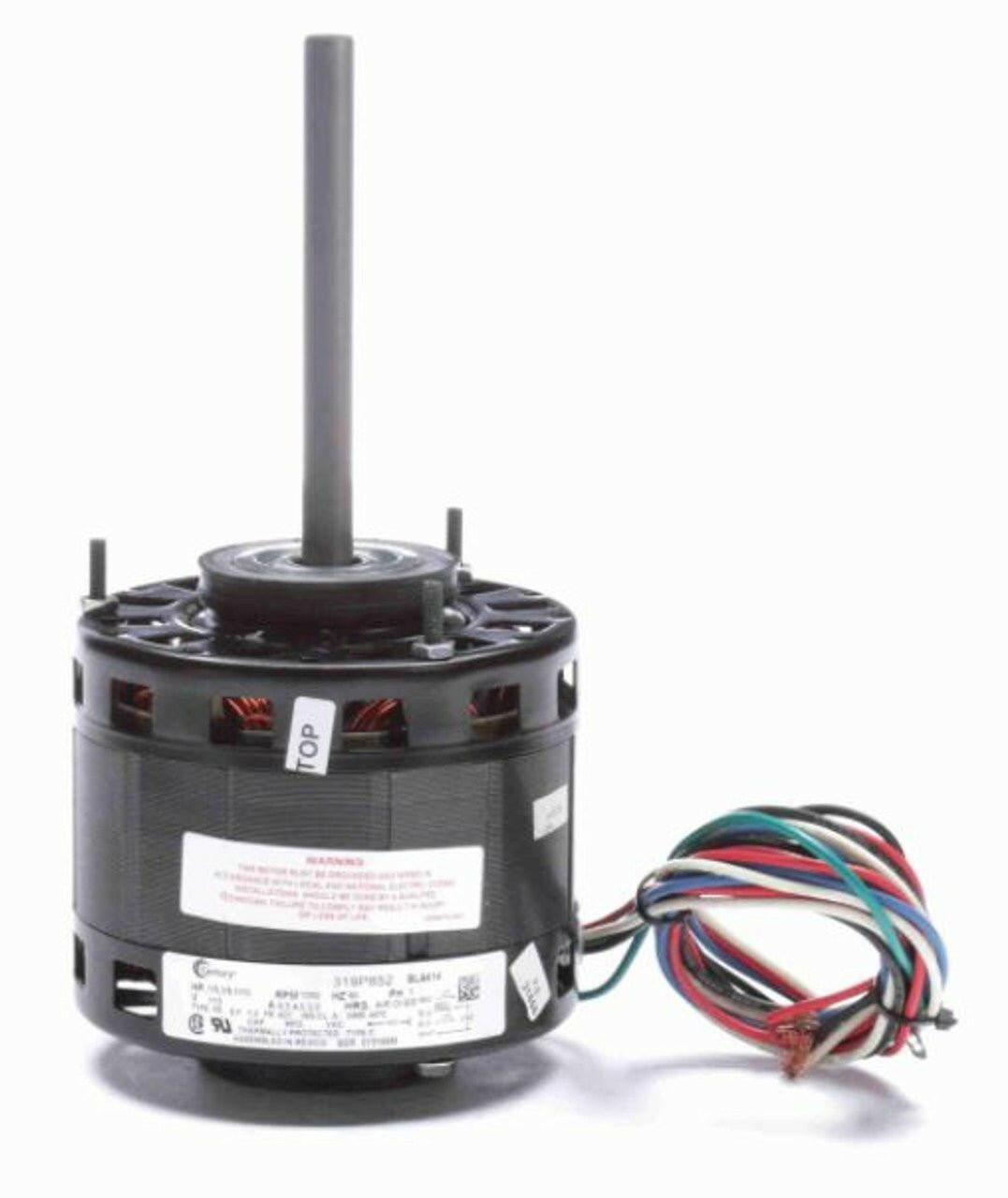

Century® BL6414 115V Furnace Blower Motor

Century  |  SKU: Item # BL6414  |  Barcode: 786674014061

$139.00

Free In-Store Pickup

Ships In 1 Business Day

Same-Day/Next-Day Local Delivery

Description

Century BL6414 1/5 HP 1050RPM 3 Speed 115 Volts 42 Frame Blower Motor Replaces Century D158

  • Furnace Blower - Attic Ventilator - Air Handler - Fan Coil Motor
  • 5" Diameter - 42 Frame
  • Shaded Pole
  • Thermally Protected
  • Open Air Over
  • Class A Insulation, 40°C Ambient
  • Sleeve Bearing
  • 1/2" Diameter Shaft with Flat
  • 35" Leads
  • Extended Studs Shaft End, Resilient Ring Mounting, Belly Band

General Specifications

UPC: 786674014061 Weight: 11.00 LB
Packaged Length: 11.18 IN Packaged Width: 6.5 IN
Packaged Height: 6.81 IN

Nameplate Specifications

Output HP: 1/5,1/8,1/10 Hp Output KW: 0.15 kW
Frequency: 60 Hz Voltage: 115 V
Current: 6.5,4.0,3.0 A Speed: 1050 rpm
Service Factor: 1 Phase: 1
Duty: Air Over Insulation Class: A
Frame: 42Y Enclosure: Open Air Over
Thermal Protection: Automatic Ambient Temperature: 40 °C
UL: Recognized CSA: Y
CE: N

Technical Specifications

Electrical Type: Shaded Pole Starting Method: Across The Line
Poles: 6 Rotation: Counterclockwise Lead End
Mounting: Resilient Rings Motor Orientation: Horizontal
Drive End Bearing: Sleeve Opp Drive End Bearing: Sleeve
Frame Material: Rolled Steel Shaft Type: Flat
Overall Length: 9.38 in Shaft Diameter: 0.500 in
Shaft Extension: 5.5 in

Direct replacement for

Century D158

Cross Ref: Replaces Fasco D158, 319P852, 319P676, 319P677, U385, 7151-2522, Dayton 161M13
