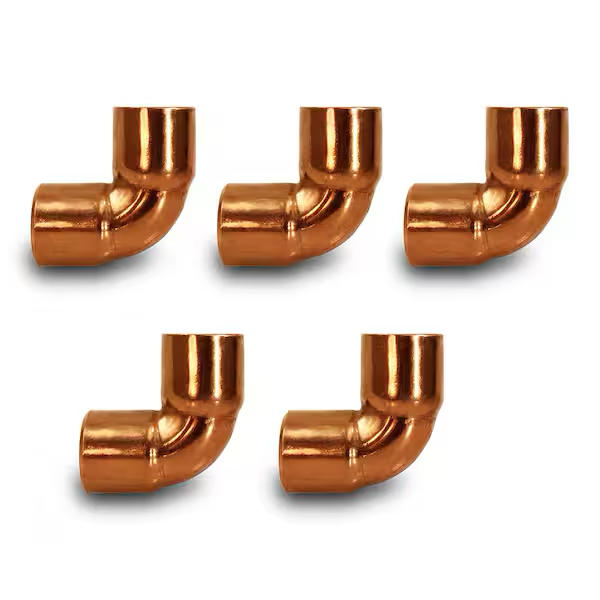

The 3/4 in. x 3/4 in. cup x cup pressure elbow redirects water line by 90°, relying on force or pressure to maintain flow. Constructed of copper material, this fitting suits hot and cold water pressure distribution systems. It features solder cups and a close-rough radius. It has a 3/4 in. fitting on each end and is dezincification-resistant for foundational integrity. This fitting has a maximum working pressure of 582 PSI at water temperatures ranging from -20 to 100° F.
- 3/4 in. Inside Diameter and 0.875 in. Outside Diameter
- Copper material
- Changes the direction of piping by 90 degrees
- Relies on force or pressure to maintain flow
- (2) 3/4 in. fittings
- Solder connections
- Dezincification resistant
- 582 PSI maximum working pressure at water temperatures ranging from -20° F to 100° F
- Certified to NSF/ANSI 61
- Type Copper Fittings
- Vendor Saber Select
- Saber's Item # 81223215 | Model # 85826
- Dimensions Diameter (End 1) 3/4-in Pipe Diameter N/A Diameter (End 2) 3/4-in
- Specifications Connection Type (End 1) Cup (Solder) Maximum Working Pressure (PSI) 594.0 Connection Type (End 2) Cup (Solder) Maximum Working Temperature (Fahrenheit) 250.0 Connection Type (End 3) N/A Minimum Working Temperature (Fahrenheit) -40.0 Degree of Angle 90 Package Quantity 1.0 Fitting Type Solder Permanent or Removable Permanent
- Color/Finish Copper
- Material Copper
- Returnable 5-Day
- Warranty None
- Saber Sales Exclusive No
- CA Residents Prop 65 Warning(s) Yes
