Square D 100-Amp 8-Spaces 16-Circuit Indoor Main Lug Load Center

Ships from manufacturer
Saber's: Item # 81223331 | Model # QO816L100SCP
(0)
Special Order £47.00 inc. VAT

Ships in 1-5 business days

This product is dispatched directly by the manufacturer. Please allow for additional processing.

Got questions?

Feel free to get in touch

Ask an expert

Video chat Chat Email +1 (915)-598-8598

Earn [points_amount] when you buy this item.

The Square D QO 100 Amp 8-Space 16-Circuit Fixed Main Lugs Indoor Surface Mount Load Center is UL listed for residential, commercial and industrial power distribution. This load center is built with a rugged themoplastic interior and an aluminum bus bar plated for reliability. QO load centers are tested and listed only for QO circuit breakers. QO load centers are the "World's Finest" designed with industry leading features for flexible application. QO load centers include features engineered for fast installation and wire savings.

  • QO Interiors and components provide time-tested reliability

  • Compatible with Square D QO standard circuit breakers

  • Includes indoor surface mount cover and aluminum bus bar

  • Includes a surface mount indoor cover

  • Accommodates plug-on secondary surge arrestor (sold separately)

  • Main feeders terminate from the top, feeders can enter from any direction, however, device cannot be rotated

  • Single phase

  • Rated 120/240 VAC and 10,000 AIR short circuit current rating

  • Surface mount device cover without a door
  • Type Breaker Boxes
  • Vendor Square D
  • Saber's Item # 81223331 | Model # QO816L100SCP
  • Barcode 047569804762

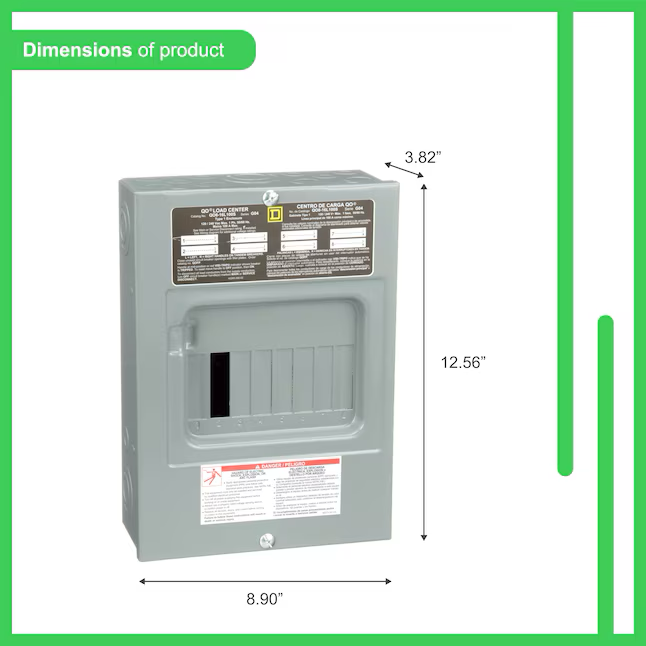

  • Dimensions Depth (Inches) 3.8 Width (Inches) 8.88 Height (Inches) 12.57
  • Features Brand/Model Compatibility Square D QO Brand Only
  • Specifications Amperage 100 Orientation Over/Under Buss Bar Construction Aluminum Paintable No Circuits 16 Phase Type Single phase (120/240) Cover Included Yes Plug-On Neutral No Feed-Through Lugs No Usage Service entrance Ground Bar Installed No Use Location Indoor Mounting Type Surface Value Pack No Number of Spaces 8
  • Weight 5 lb
  • Color/Finish Gray
  • Style Breaker Boxes
  • AMPS 100-Amp
  • Returnable 30-Day
  • Warranty 18-month limited
  • Saber Sales Exclusive No
  • CA Residents Prop 65 Warning(s) No
