SUNCOURT

SUNCOURT Inductor 6-in dia 250-CFM Galvanized Steel Axial Duct Fan

Saber's: Item # 12231041 | Model # DB206C
(0)
In stock
Usually ships within 24 hours
€46,95 inc. VAT
Product Location:
Ships in 1 business day

Get quick delivery on all in-stock orders - Shipments processed within 1 business day.

Got questions?

Feel free to get in touch

Ask an expert

Video chat Chat Email +1 (915)-598-8598
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
Suncourt’s corded in-line duct fans provide a simple solution to boost air to a room that is too hot or too cold. This fan requires no electrical wiring; just plug the duct fan into the Suncourt duct stat temperature sensitive switch, sold separately, to eliminate the need of hard wiring to the furnace.

  • Solves air delivery problems without major system rework or expense

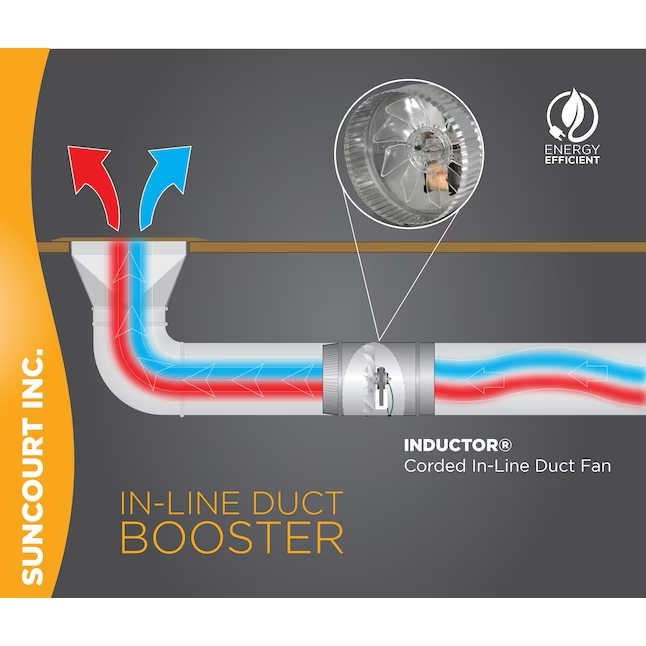

  • The inductor 6-in corded in-line duct fan is engineered to overcome back pressure and boost air in forced air heating and cooling systems without upsetting the balance in the closed loop system

  • MET listed E227633 heating and cooling equipment UL 1995

  • 160 CFM free air to maximum boosted air 250 CFM

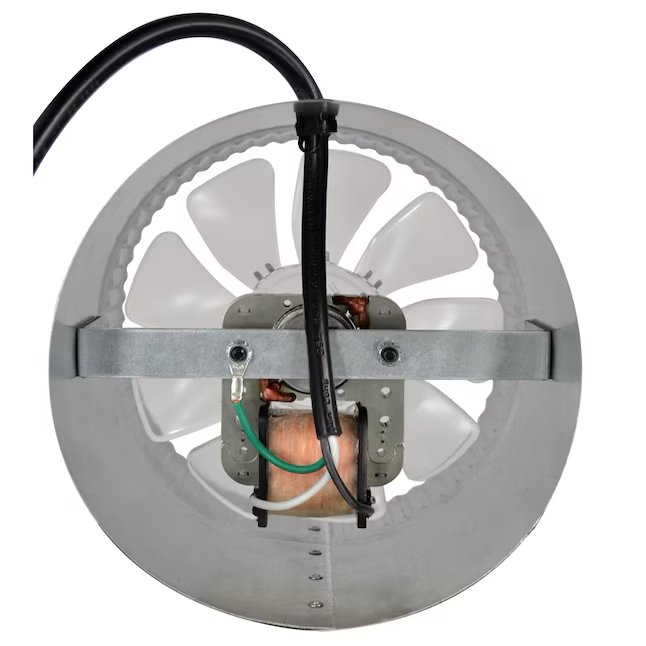

  • Thermally protected class B motor with automatic reset thermal fuse

  • Engineered polycarbonate blade to minimize noise and vibration

  • 6-ft heavy duty SJT 3 conductor 18-gauge grounded cord

  • Plugs right into the Ductstat, model DS100, (sold separately) for automatic temperature controlled on/of operation

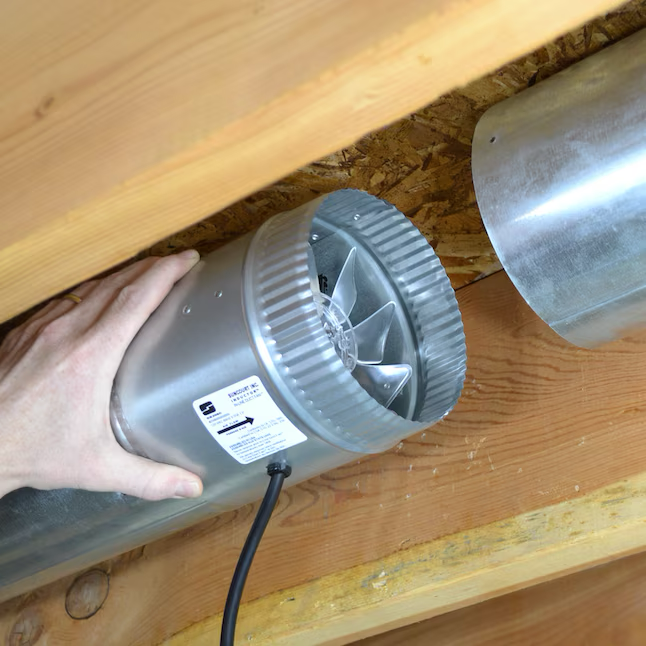

  • Installs in any position
  • Type Duct Fans
  • Vendor SUNCOURT
  • Saber's Item # 12231041 | Model # DB206C
  • Barcode 066028000774
  • Dimensions Diameter (Inches)
    6
    Weight (lbs.)
    2.5
    Length (Inches)
    6
    Width (Inches)
    6
  • Specifications Amperage
    0.35
    Pressure Indicator Included
    No
    Blade Material
    Polycarbonate
    Sones Rating - Horizontal
    2.4
    Couplers Included
    No
    Sones Rating - Vertical
    2.4
    Decibel Rating (Decibels)
    52
    Use Location
    Indoor
    Fan Speed
    Single speed
    Volts
    110
    Wall Plate Included
    No
    Maximum CFM
    250
    Wattage
    30
    Maximum Working Temperature (Fahrenheit)
    140
  • Weight 2 lb
  • Material Galvanized Steel
  • Returnable 5-Day
  • Warranty 1-year limited
  • Saber Sales Exclusive No
  • CA Residents Prop 65 Warning(s) No
