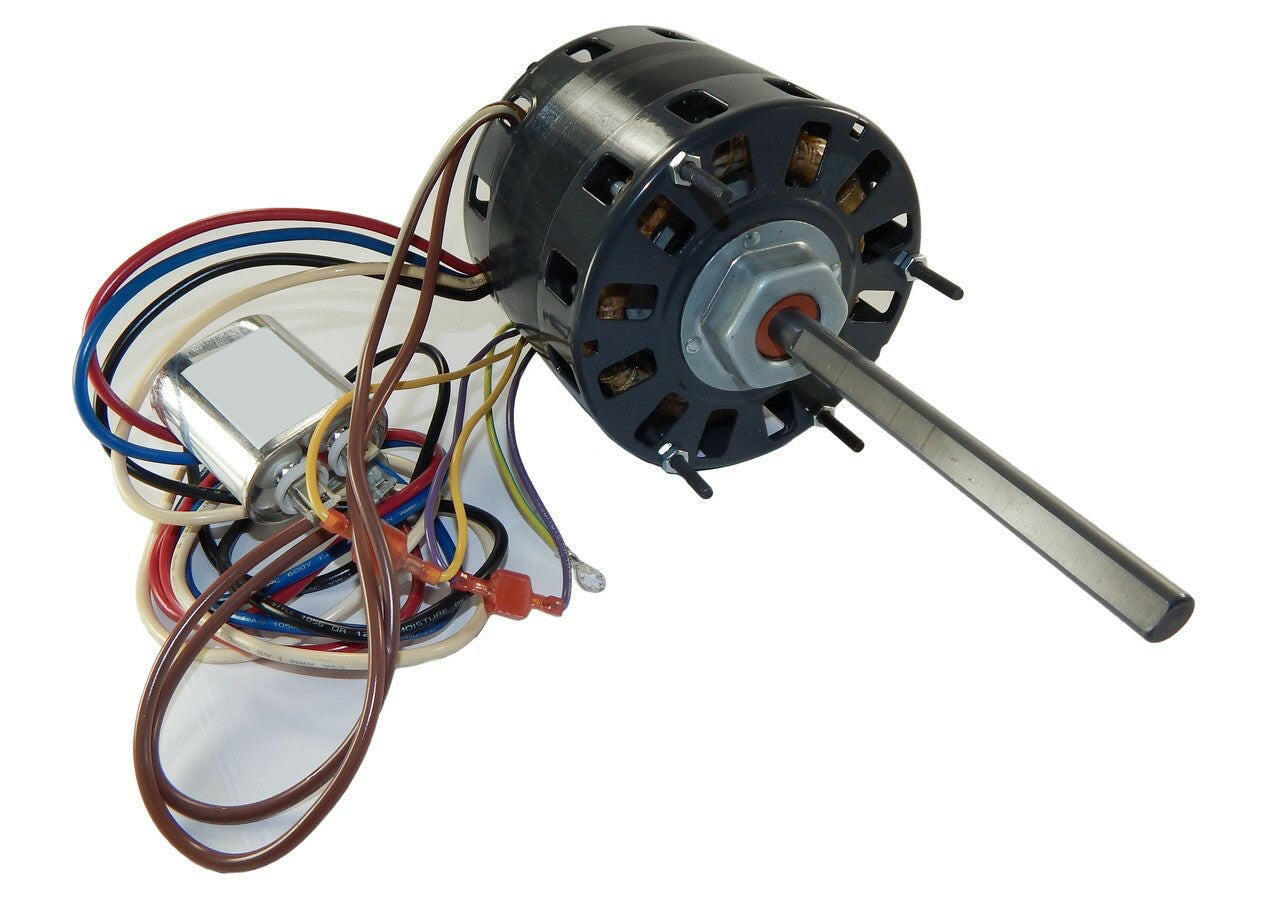

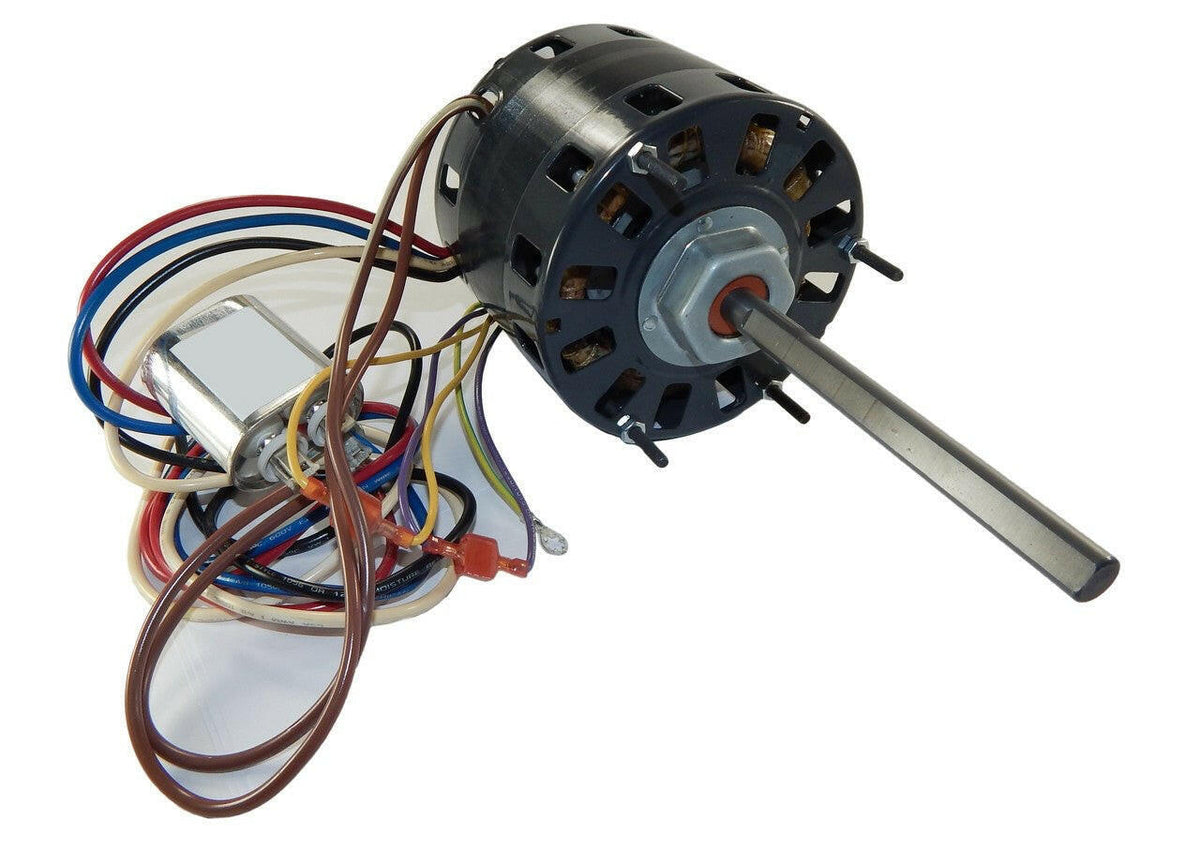

PEMS D151 Fan and Blower Motor 1/4-1/5-1/6 HP 1 Ph 60 Hz 230 V 1050 RPM 3 Speed

Saber's: Item # 4122491 | Model # D151
(0)
Out of stock
New inventory coming soon!
€159,95 inc. VAT
Product Location:

Ships in 1 business day

Get quick delivery on all in-stock orders - Shipments processed within 1 business day.

Got questions?

Feel free to get in touch

Ask an expert

Video chat Chat Email +1 (915)-598-8598



PEMS D151 Fan and Blower Motor 1/4-1/5-1/6 HP 1 Ph 60 Hz 230 V 1050 RPM 3 Speed 42 Frame

KEY FEATURES

  • Direct Drive Blower Motor
  • 5" Diameter - 42 Frame
  • Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
  • Thermally Protected
  • Open Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • 1/2" Diameter Shaft with Flat
  • 30" Leads
  • Extended Studs Shaft End, Belly Band

General Specifications

UPC: Weight: 11.80 LB
Packaged Length: 5.13 IN Packaged Width: 5.13 IN
Packaged Height: 15 IN Country of Origin: Mexico

Nameplate Specifications

Output HP: 1/4-1/5-1/6 Hp Output KW: 0.19 kW
Frequency: 60 Hz Voltage: 230 V
Current: 1.7/1.2/1.0 A Speed: 1050 rpm
Service Factor: 1 Phase: 1
Duty: Continuous Insulation Class: B
Frame: 42 Enclosure: Open Air Over
Thermal Protection: Automatic Ambient Temperature: 40 °C
UL: Recognized CSA: Y
CE: N Number of Speeds: 3

Technical Specifications

Electrical Type: Permanent Split Capacitor Starting Method: Across The Line
Poles: 6 Rotation: Reversible
Mounting: Extended Studs Drive End Bearing: Sleeve
Opp Drive End Bearing: Sleeve Frame Material: Na
Shaft Type: Flat Overall Length: 10.97 in
Shaft Diameter: 0.500 in Shaft Extension: 6.00 in
  • Type Blower Motor
  • Vendor PEMS
  • Saber's Item # 4122491 | Model # D151
  • Weight 10 lb
  • Material Steel
  • Returnable 10-Day
  • Warranty None
  • Saber Sales Exclusive No
  • CA Residents Prop 65 Warning(s) Yes
