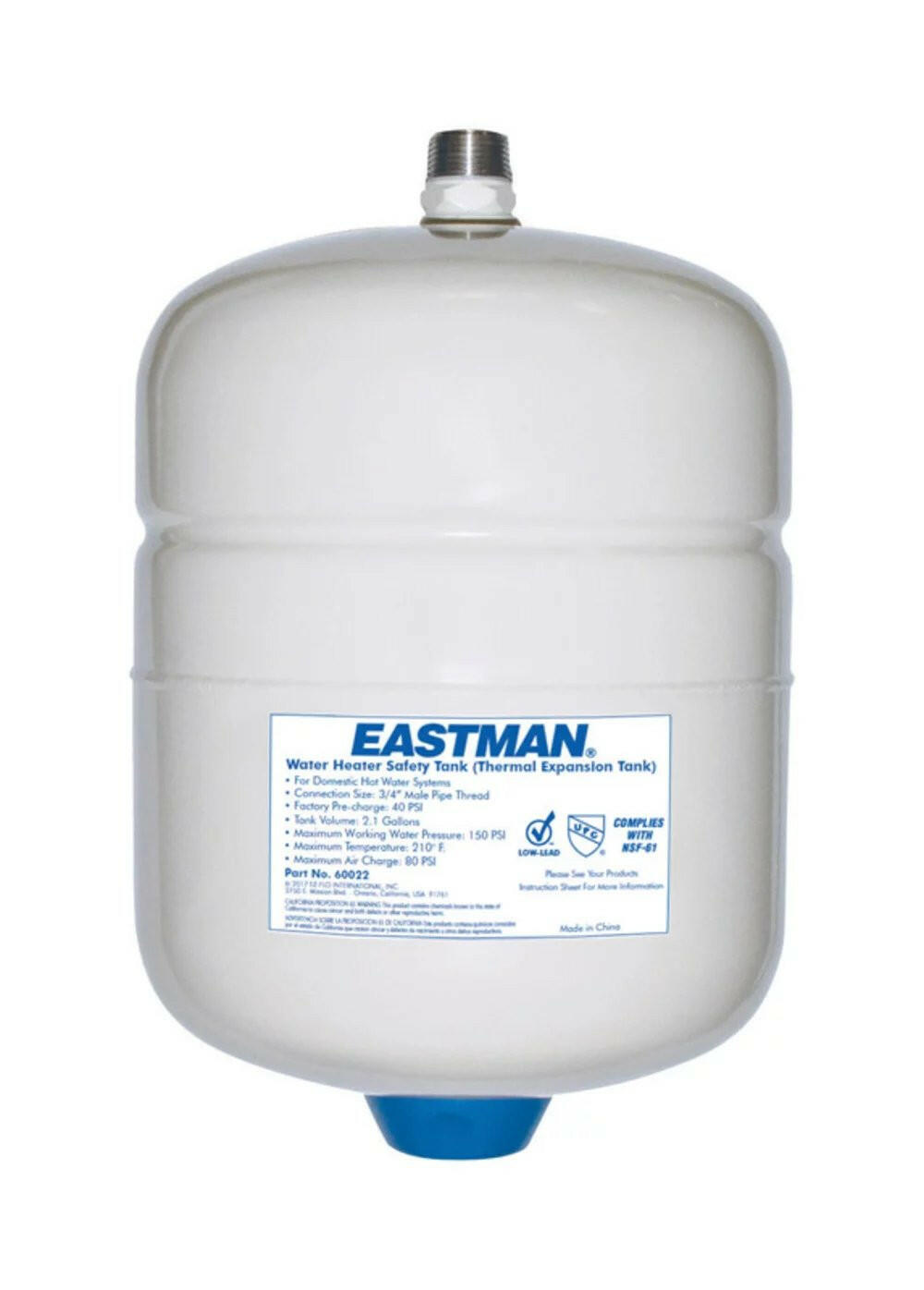

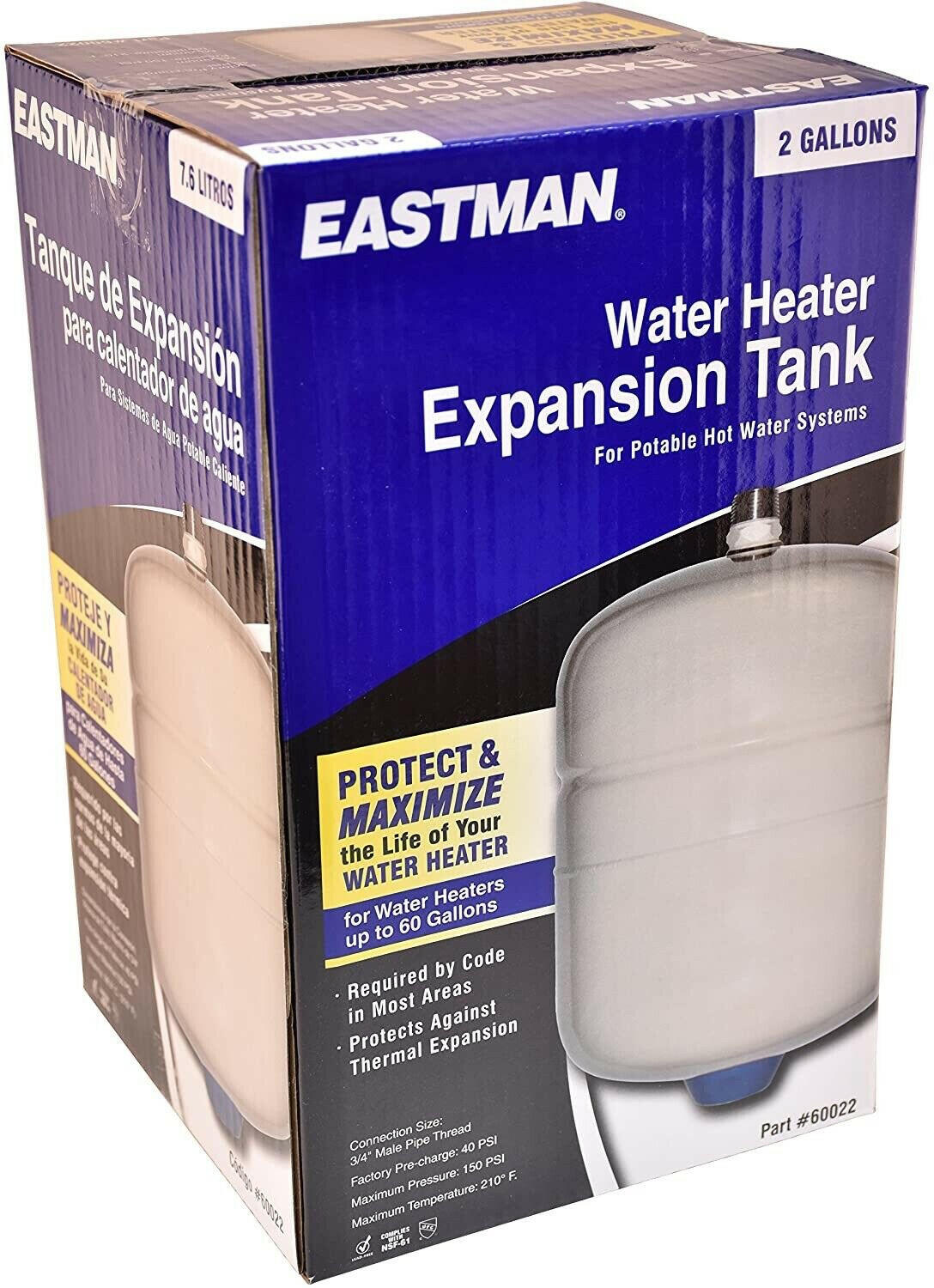

Eastman 2 Gallon Water Heater Expansion Tank
Couldn't load pickup availability
Ships in 1 business day
Get quick delivery on all in-stock orders - Shipments processed within 1 business day.
Got questions?
Feel free to get in touch
Ask an expert

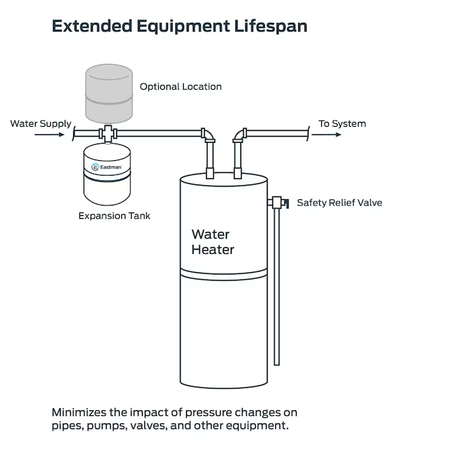

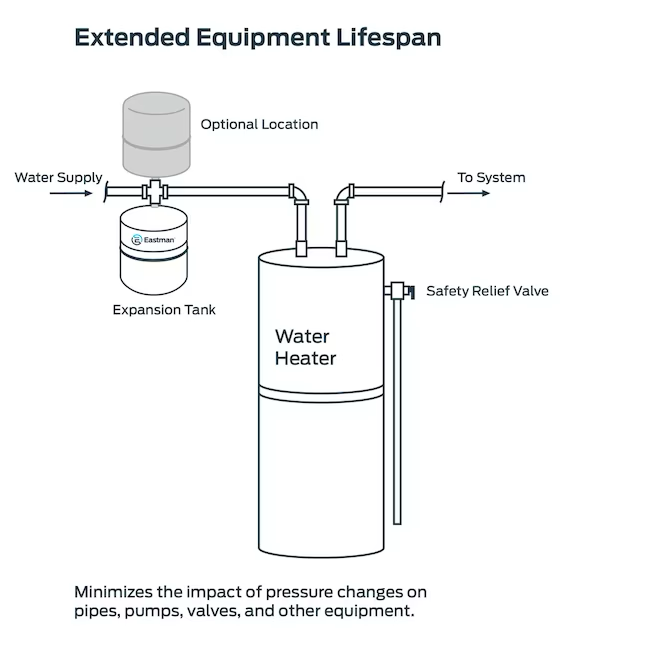

The Eastman 2-Gallon thermal expansion tank is designed to prevent dangerous build-ups of pressure in your water heater tank. The thermal expansion tank stops hot water from backflowing into the cold water line while preventing hot water from escaping through the pressure relief valve and onto the floor. This constant fluctuations in water pressure can be dangerous and they can damage your water heater tank permanently, properly installing a thermal expansion tank can solve all these issues. Recommended for homes with a closed-loop water supply system This product comes with a 6-year limited warranty and is factory pre-charged at 40 psi. Complies with NSF-61 and Lead Free law. UPC approved.
Technical Specifications

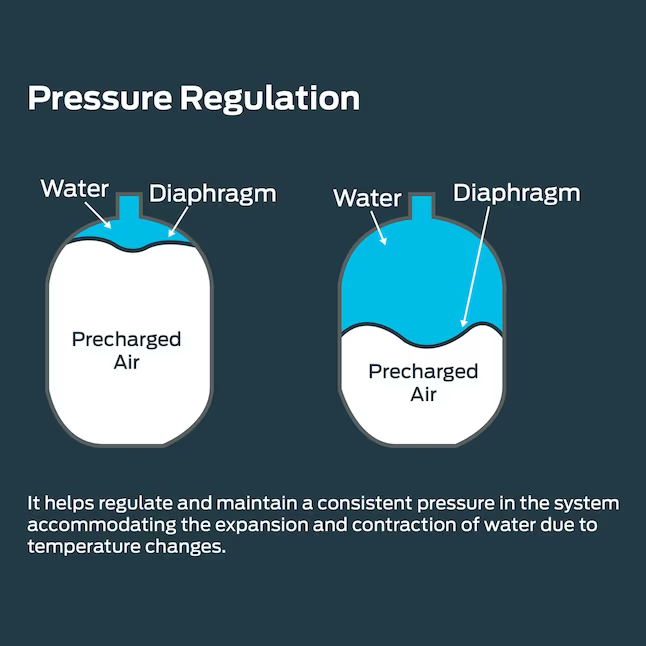

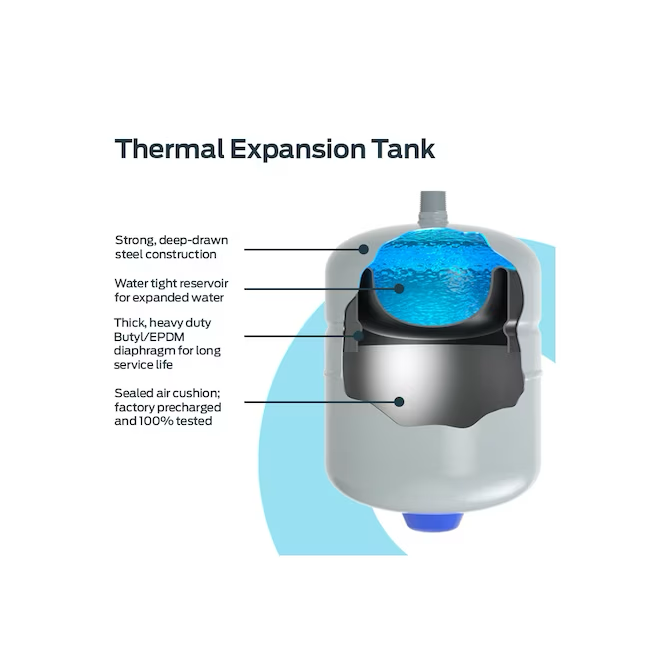

- Construction: Butyl rubber diaphragm. 304 stainless steel fittings

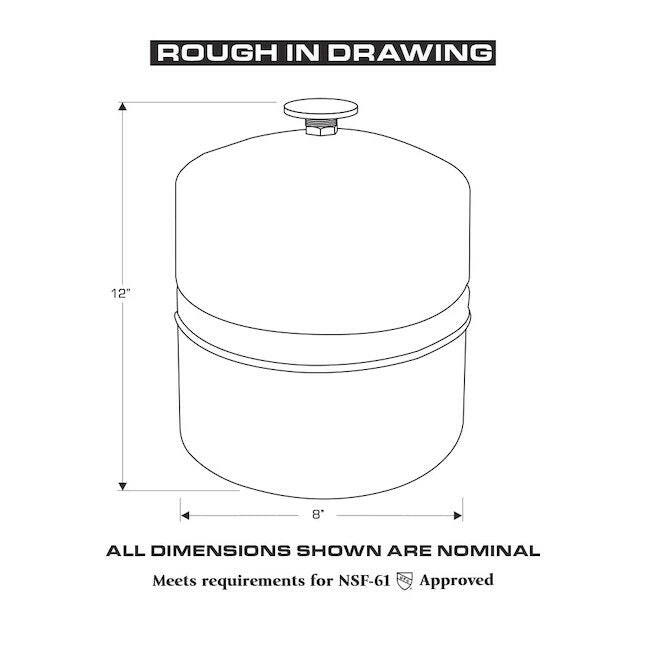

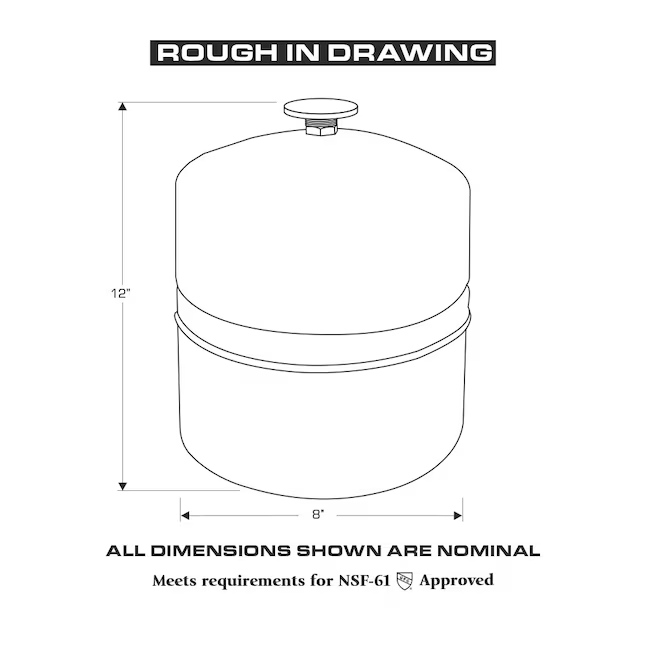

- Dimensions: 12.4 in. L x 8.3 in. W X 8.1 in. H
- Connection: 3/4 in. MIP
- Max. Operating Temperature: 210° F
- Max. Working Pressure: 150 psi
- Type Expansion Pressure Tank
- Vendor Eastman
- Saber's Item # 61223520 | Model # 60022
- Dimensions Diameter (Inches) 8.3 Tank Discharge Size (Inches) 0.075 Height (Inches) 8.1 Thread Size (Inches) 0.75 Recommended Size (# of Faucets/Showers) Use with Hot Water Heater Tank Capacity (Gallons) 2.0
- Features Drawdown Gallons @ 20-40 PSI N/A Pressure Relief Valve Yes Drawdown Gallons @ 30-50 PSI N/A Tank Type Expansion Drawdown Gallons @ 40-60 PSI N/A Volts N/A Material Steel
- Weight 5.3 lb
- Color/Finish White
- Material Steel
- Style Expansion
- Returnable 30-Day
- Warranty 6-year limited
- Saber Sales Exclusive No
- CA Residents Prop 65 Warning(s) Yes
