Square D QO 40-amp 2-Pole Standard Trip Circuit Breaker
Ships in 1-5 business days
This product is dispatched directly by the manufacturer. Please allow for additional processing.
Got questions?
Feel free to get in touch
Ask an expert
-
Designed to protect against overloads and short-circuits
-
Quickly identify tripped breakers with our Visi-Trip indicator
-
Compatible with Square D QO electrical panels, CSED with 2 spaces
-

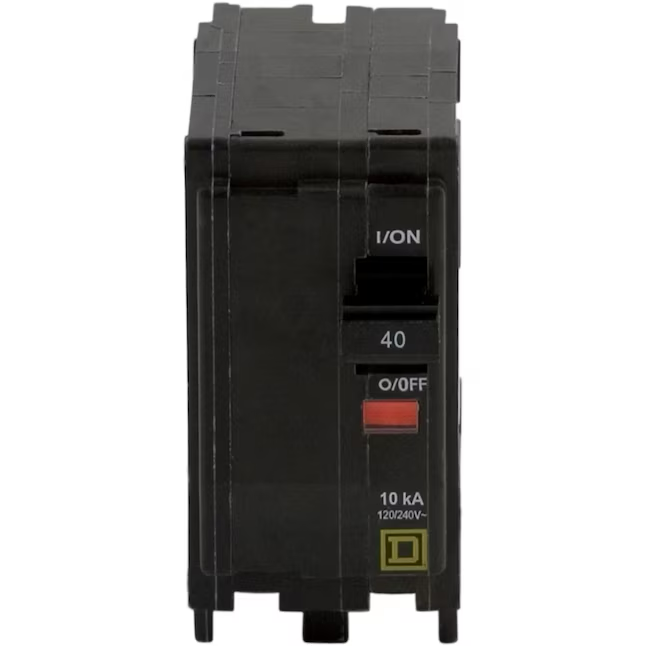

Square D QO 40 Amp two-pole circuit breaker
-

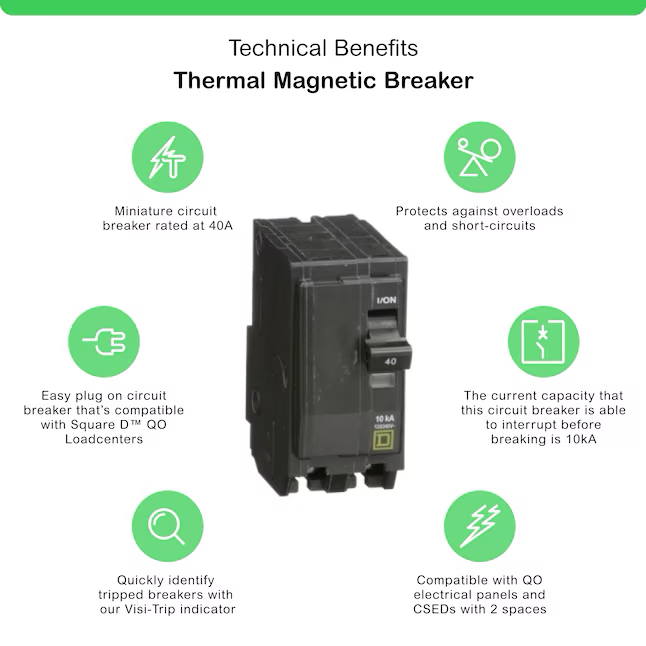

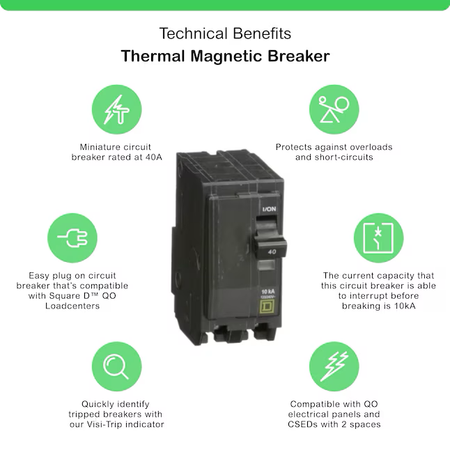

QO 40 Amp two-pole circuit breaker contains a thermal-magnetic tripping mechanism and has a two-pole common trip and the breaker features a visi-trip indicator to easily identify the tripped circuit in the load center
-
Breaker features a visi-trip indicator to easily identify a tripped circuit in the load center this circuit breaker has a maximum load of 240-Volt with a 10,000 AIR and uses a thermal-magnetic tripping mechanism
-
Use for overload and short-circuit protection of your electrical system
-
2-pole with a common trip
-

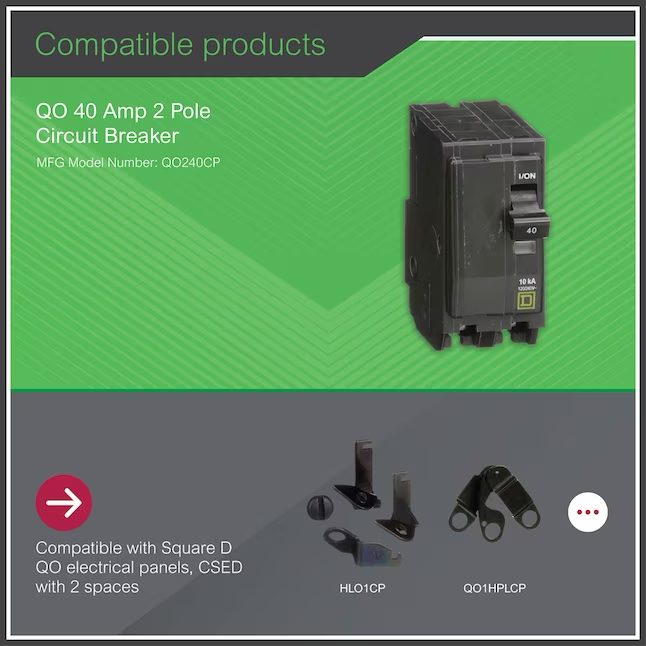

Compatible with Square D QO load centers and CSED devices with 2 spaces
- Type Circuit Breakers
- Vendor Square D
- Saber's Item # 81223353 | Model # QO240CP

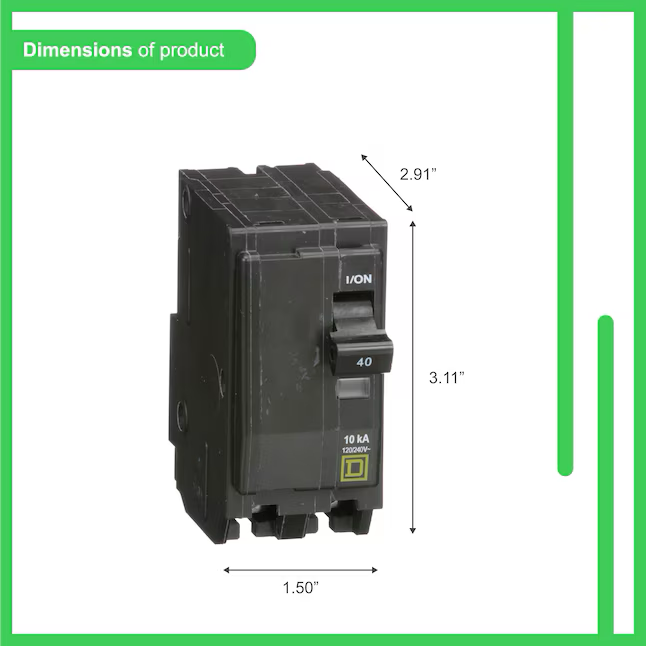

- Dimensions Power Capacity 40-amp Width Measurement 1-1/2-in
- Specifications Circuit Breaker Voltage 240 Phase Single phase (120/240) Ground Fault Protection No self test Plug-On Neutral No Interrupting Amp Listing (Amps) 10000 Surge Protection No Number of Poles 2
- Weight 1 lb
- Color/Finish Black
- Style Standard trip
- AMPS 40-Amp
- Returnable 10-Day
- Warranty 1-year limited
- Saber Sales Exclusive No
- CA Residents Prop 65 Warning(s) No
