Square D Homeline 200-Amp 30-Spaces 60-Circuit Indoor Main Breaker Plug-on Neutral Load Center (Value Pack)
Ships in 1-5 business days
This product is dispatched directly by the manufacturer. Please allow for additional processing.
Got questions?
Feel free to get in touch
Ask an expert
Earn [points_amount] when you buy this item.
-
Less wiring, clean gutter, fast installation with Plug-On Neutral
-
Compatible with any Square D Homeline circuit breaker
-
Homeline breakers, cover, and aluminum bus bar included
-
Includes a fully distributed neutral bar, allowing for the installation of Homeline plug-on neutral combination arc fault breakers on any space
-
Each pole space accepts full-size, tandem or quad breakers
-
Ground and neutral bars accept up to (3) #10-14 equipment grounds
-

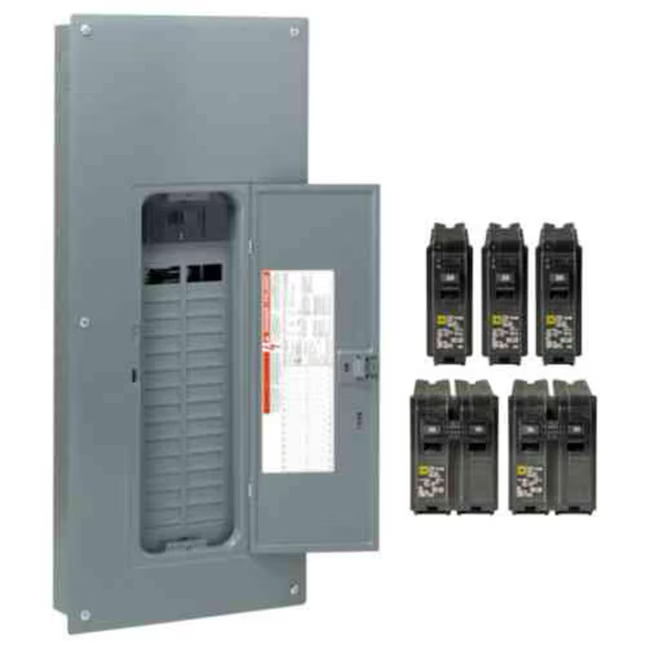

Includes (3) HOM120 Homeline 20 Amp single-pole circuit breakers, (2) HOM230 Homeline 30 Amp double-pole circuit breakers and a combination flush/surface cover
-
Accommodates plug-on secondary surge arrestor (sold separately)
-
Overhead/underground feed simply by rotating the device before installing
- Type Breaker Boxes
- Vendor Square D
- Saber's Item # 81223334 | Model # HOM3060M200PQCVP

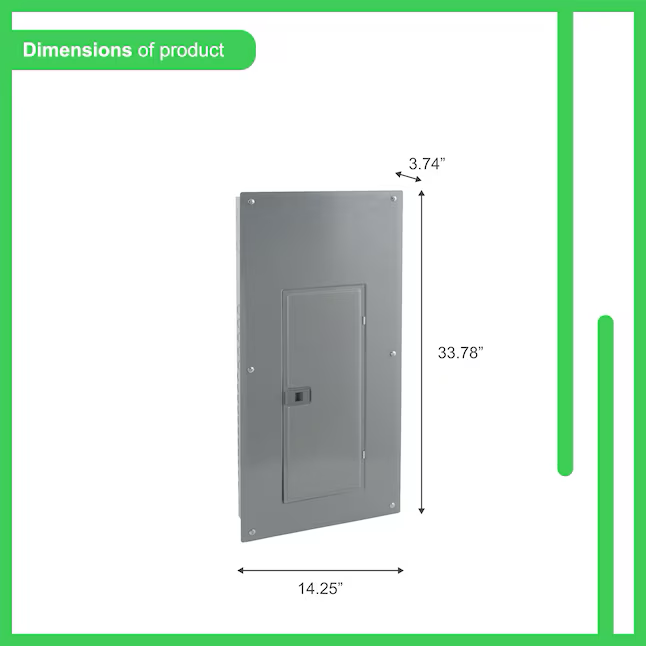

- Dimensions Depth (Inches) 3.75 Width (Inches) 14.25 Height (Inches) 33.78
- Features Value Pack Contents 3 HOM 120 and 2 HOM230
- Specifications Amperage 200 Orientation Over/Under Buss Bar Construction Aluminum and copper Paintable Yes Circuits 60 Phase Type Single phase (120/240) Cover Included Yes Plug-On Neutral Yes Feed-Through Lugs No Usage Service entrance Ground Bar Installed No Use Location Indoor Mounting Type Combination Value Pack Yes Number of Spaces 30
- Weight 5 lb
- Color/Finish Gray
- Style Breaker Boxes
- AMPS 20--Amp
- Returnable 30-Day
- Warranty 18-month limited
- Saber Sales Exclusive No
- CA Residents Prop 65 Warning(s) No
