Square D Homeline 100-Amp 20-Spaces 40-Circuit Indoor Main Breaker Plug-on Neutral Load Center (Value Pack)
Ships in 1-5 business days
This product is dispatched directly by the manufacturer. Please allow for additional processing.
Got questions?
Feel free to get in touch
Ask an expert
Earn 129 Points when you buy this item.
-
Less wiring, clean gutter, fast installation with Plug-On Neutral
-
Compatible with any Square D Homeline circuit breaker
-
Homeline breakers, cover, and aluminum bus bar included
-

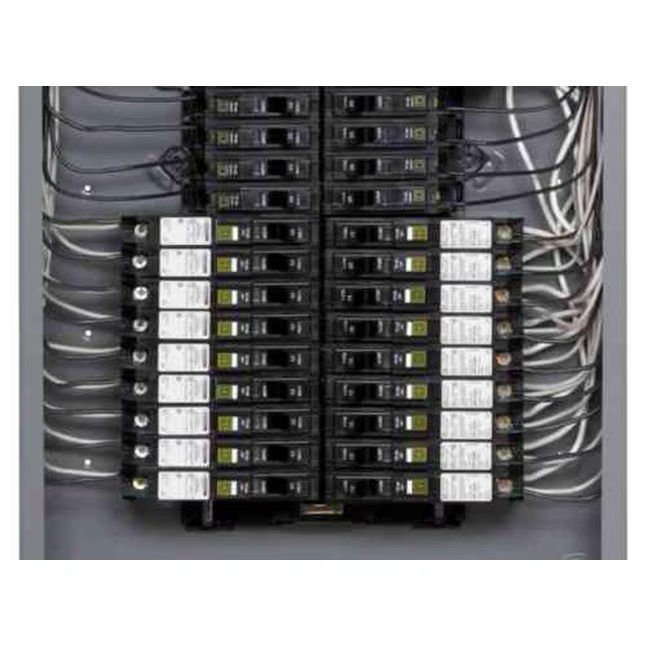

Includes a fully distributed neutral bar, allowing for the installation of Homeline plug-on neutral combination arc fault breakers on any space
-
Each pole space accepts full-size, tandem or quad breakers
-
Ground and neutral bars accept up to (3) #10-14 equipment grounds
-

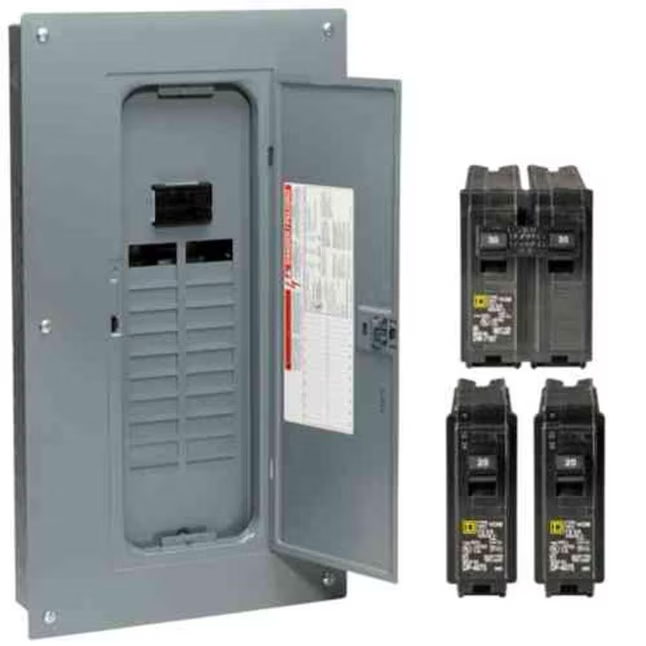

Includes (2) HOM120 Homeline 20 Amp single-pole circuit breakers, (1) HOM230 Homeline 30 Amp double-pole circuit breakers and a combination flush/surface cover
-
Accommodates plug-on secondary surge arrestor (sold separately)
-
Overhead/underground feed simply by rotating the device before installing
- Type Breaker Boxes
- Vendor Square D
- Saber's Item # 81223326 | Model # HOM2040M100PQCVP

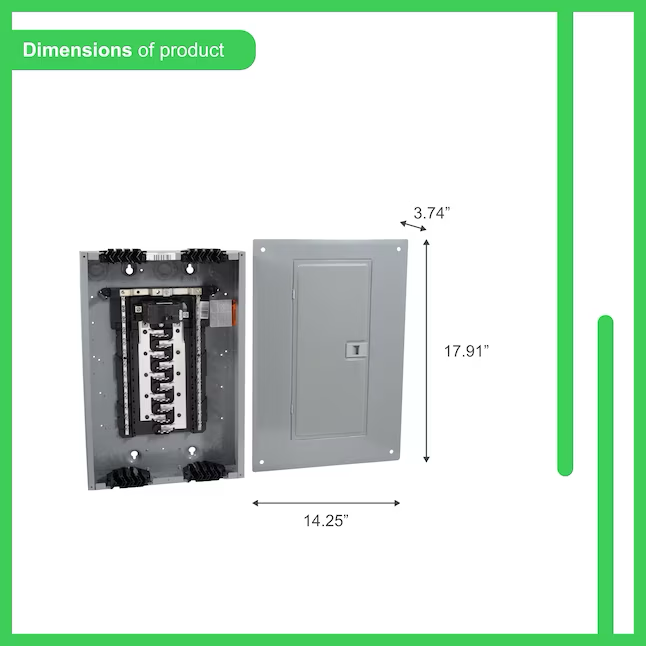

- Dimensions Depth (Inches) 3.75 Width (Inches) 14.25 Height (Inches) 20.92
- Features Value Pack Contents 2 HOM 120 and 1 HOM230
- Specifications Amperage 100 Orientation Over/Under Buss Bar Construction Aluminum and copper Paintable Yes Circuits 40 Phase Type Single phase (120/240) Cover Included Yes Plug-On Neutral Yes Feed-Through Lugs No Usage Service entrance Ground Bar Installed No Use Location Indoor Mounting Type Combination Value Pack Yes Number of Spaces 20
- Weight 5 lb
- Color/Finish Gray
- Style Breaker Box
- AMPS 100-Amp
- Returnable 30-Day
- Warranty 18-month limited
- Saber Sales Exclusive No
- CA Residents Prop 65 Warning(s) No
