Square D

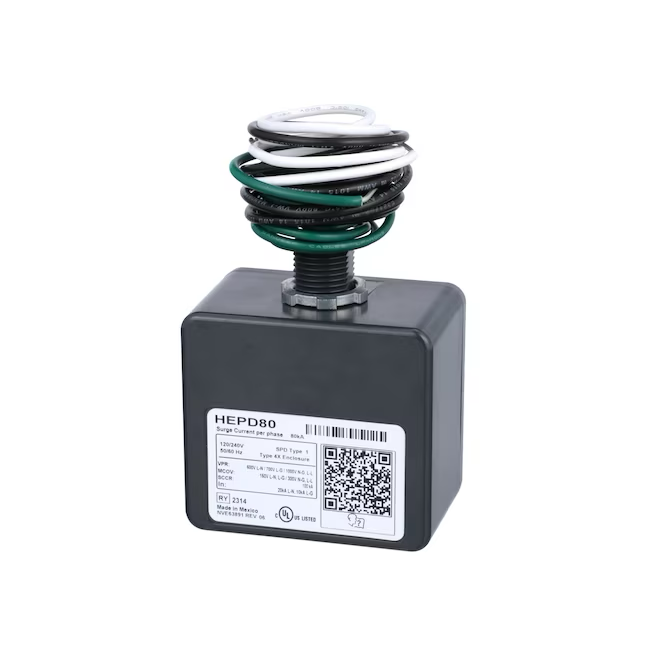

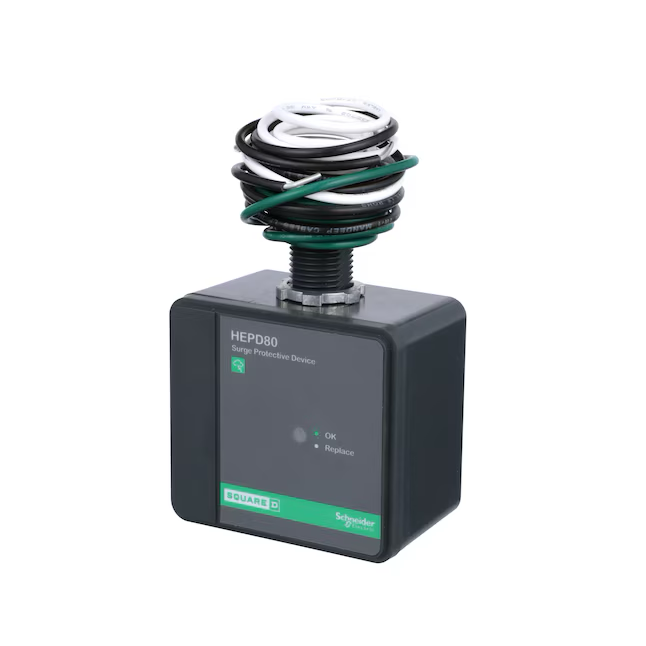

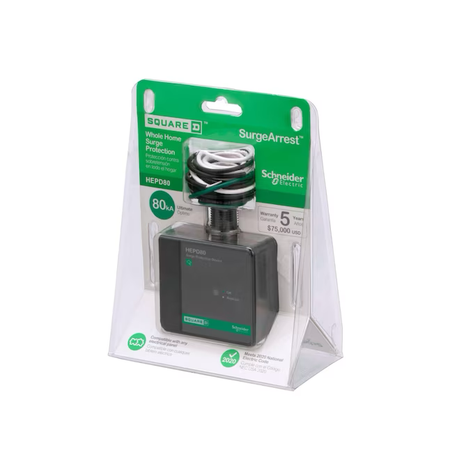

Square D 80-kA Indoor and Outdoor Surge Protective Device

Ships from manufacturer
Saber's: Item # 81223361 | Model # HEPD80
(0)
Special Order $200.00
Ships in 1-5 business days

This product is dispatched directly by the manufacturer. Please allow for additional processing.

Got questions?

Feel free to get in touch

Ask an expert

Video chat Chat Email +1 (915)-598-8598
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
Square D brand Home Electronics Protective Devices (HEPDs) are compact and affordable surge suppressors designed and is compatible for any brand residential load centers. HEPDs work together with surge protection plug strips to provide surge suppression for sensitive electronics. HEPDs reduce surges that might otherwise overwhelm plug strips and damage connected household equipment. HEPDs also provide surge suppression for important items such as washers, dryers, refrigerators, stoves, and air conditioning that plug strips may not or cannot protect.

  • Learn about general NEC 2020 updates, contact your local building inspector for code adoption and details

  • Square D whole home surge protection device rated for 80kA

  • Easy to install - Mounts next to any residential load center

  • 5 Year warranty - $75,000 downstream equipment protection

  • 80,000 Amp/phase maximum surge current

  • Compatible with any brand breaker boxes

  • LED status indicators

  • Industry leading design and product testing

  • For installation in 120/240-Volt AC systems
  • Type Whole House Surge Protectors
  • Vendor Square D
  • Saber's Item # 81223361 | Model # HEPD80
  • Barcode 785901008729
  • Dimensions Depth (Inches)
    2.1
    Weight (lbs.)
    1.1
    Height (Inches)
    3.72
    Width (Inches)
    2.95
  • Specifications Amperage
    80000
    Response Time (Microseconds)
    0.05
    Application
    Residential
    Short Circuit Current Rating
    80 kA
    Coaxial Lines Protected
    0
    SPD Type
    Type 1
    Connection Type
    Next to load center mount
    Surge Current Protection Per Phase
    80-kA
    Enclosure Rating
    NEMA 4X
    Surge Protection
    ANSI/EEE
    Grounded
    Yes
    Use Location
    Indoor and outdoor
    Housing Material
    Plastic
    Voltage Protection Rating L-G
    600-V
    Indicator Light
    Yes
    Voltage Protection Rating L-L
    1000-V
    Line Protection
    L-N-L-G-L-L-N-G
    Voltage Protection Rating L-N
    600-V
    Maximum Amperage
    80,000
    Voltage Protection Rating N-G
    900-V
    Maximum Continuous Operating Voltage
    150/300 Vpk
    Water Resistant
    Yes
    Nominal Discharge Current
    10kA
    Wattage
    0
    Number of Leads
    4
    Weather Resistant
    Yes
    Package Quantity
    1
    Wire Gauge
    14-AWG
    Rating in Joules
    3300
  • Weight 1 lb
  • Color/Finish Black
  • Style Whole House Surge Protectors
  • Returnable 10-Day
  • Warranty 5-year limited
  • Saber Sales Exclusive No
  • CA Residents Prop 65 Warning(s) No
