Siemens

Siemens EQ 125-Amp 8-Spaces 16-Circuit Outdoor Main Lug Load Center

Ships from manufacturer
Saber's: Item # 71223710 | Model # W0816ML1125CU
(0)
Special Order $98.00

Ships in 1-5 business days

This product is dispatched directly by the manufacturer. Please allow for additional processing.

Got questions?

Feel free to get in touch

Ask an expert

Video chat Chat Email +1 (915)-598-8598

Earn 70 Points when you buy this item.

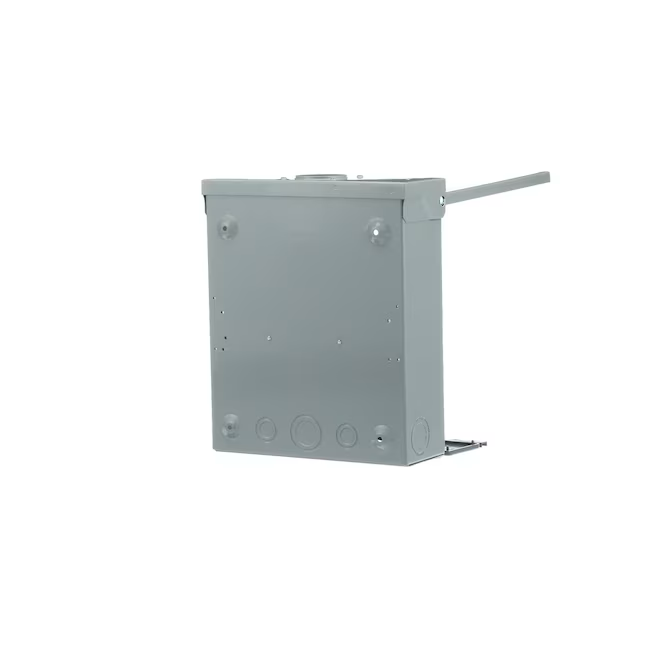

The Siemens EQ 125 Amp 8-Space 16-Circuit Main Lug Outdoor Load Center is NEMA 3R rated for outdoor use and has a hinged door that can be removed by backing-out 1 screw. The load center features a 1-piece copper buss bar that offers excellent conductivity and is ideal for use where the environment can become severe, such as on farms and near coastal areas. Suitable for use as service equipment when a main breaker (125 Amp maximum) is back-fed in a branch position and used with main breaker retainer clip.

  • Suitable for use as service entrance equipment

  • One piece Copper Bus designed for use with circuit breakers only

  • 100 kA Interrupting Rating

  • For use as a main lug load center

  • Suitable for use as service entrance equipment when a main breaker is installed

  • G90 hot-dipped, galvanized-carbon-steel enclosure helps provide corrosion protection and has a hinged door that can be removed by backing out 1 screw

  • Powder coating of polyester paint using electrostatic process enhances corrosion protection and gives a great-looking finish, free of drips and runs

  • Meets UL and ANSI safety requirements

  • NEMA Type 3R rated intended for outdoor use
  • Type Breaker Boxes
  • Vendor Siemens
  • Saber's Item # 71223710 | Model # W0816ML1125CU
  • Barcode 783643165519

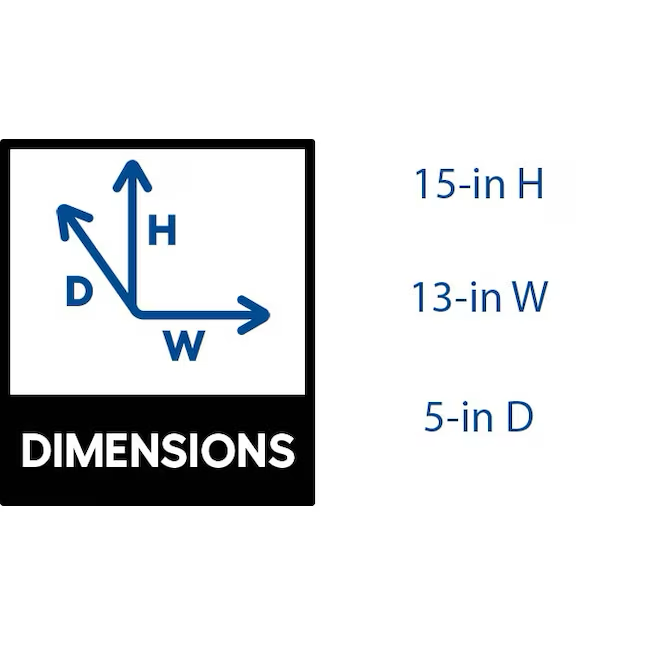

  • Dimensions Depth (Inches) 4.1 Width (Inches) 12.1 Height (Inches) 14.7
  • Features Brand/Model Compatibility Siemens
  • Specifications Amperage 125 Paintable Yes Buss Bar Construction Copper Phase Type Single phase (120/240) Circuits 16 Plug-On Neutral No Cover Included Yes Usage Sub-panel Feed-Through Lugs No Use Location Outdoor Ground Bar Installed No Value Pack No Mounting Type Surface Value Pack Contents N/A Number of Spaces 8 Voltage 120 Orientation Over/Under
  • Weight 5 lb
  • Color/Finish Gray
  • Style Breaker Boxes
  • Returnable 30-Day
  • Warranty 1-year
  • Saber Sales Exclusive No
  • CA Residents Prop 65 Warning(s) No
