Siemens

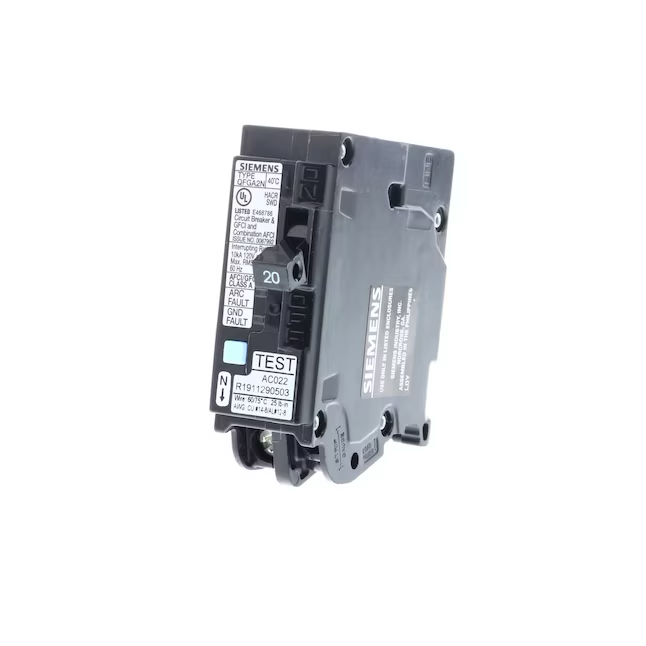

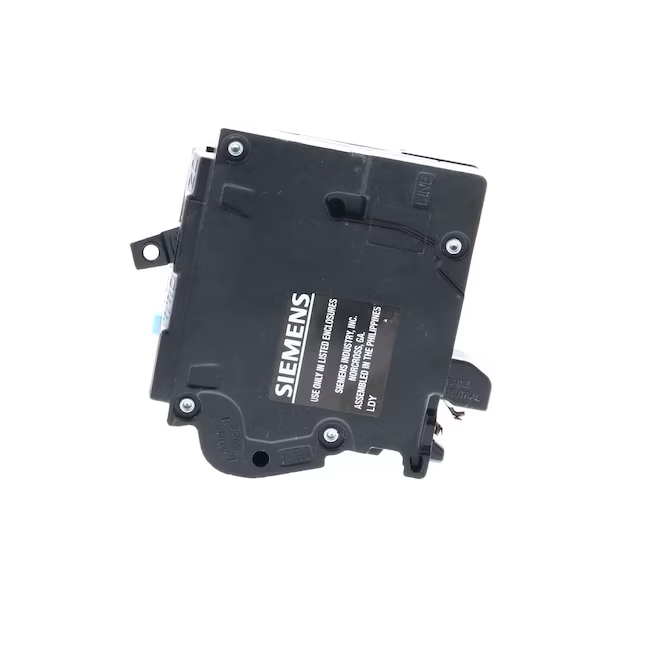

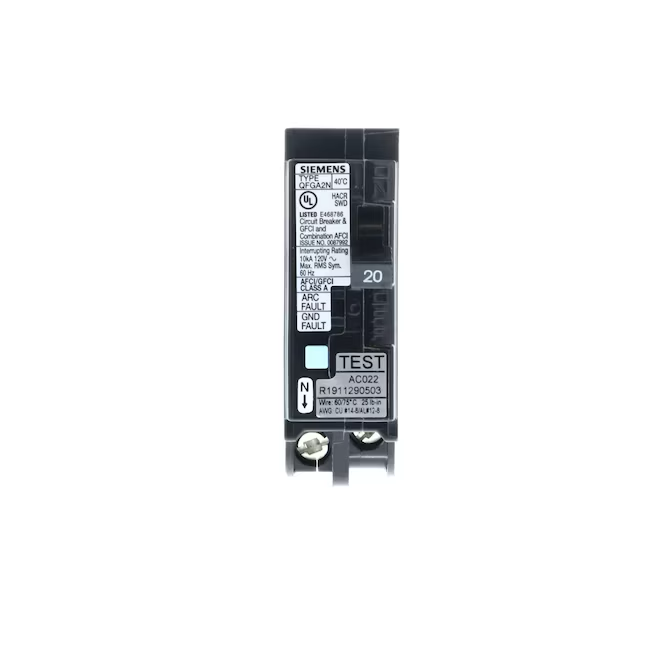

Siemens QFG 20-amp 1-Pole Dual Function Afci/Gfci Plug-on Neutral Circuit Breaker

Ships from manufacturer
Saber's: Item # 71223699 | Model # Q120DFNP
(0)
Special Order $99.00 inc. VAT

Ships in 1-5 business days

This product is dispatched directly by the manufacturer. Please allow for additional processing.

Got questions?

Feel free to get in touch

Ask an expert

Video chat Chat Email +1 (915)-598-8598

Earn [points_amount] when you buy this item.

Siemens introduces the new simple, spacious and secure Plug-on neutral load centers with electronic breakers. The Dual Function plug-on neutral breaker offers Combination Type Arc Fault and 5mA GFCI protection in one device. The new design allows for the same reliable installation method using the neutral clip as the line side clip. The small footprint allows for over 4 inches of wire bending space. Before the release of Dual Function Circuit Breakers, the only option to comply with this code was to pair an AFCI circuit breaker with a GFCI receptacle. The Dual Function Circuit breaker combines these 2 devices into once solution that provides both cost savings and less hassle in installation and maintenance. This is a win solution for everyone. Testing GFCI's and AFCI's on a monthly basis is a good idea that is sometimes forgotten. Underwriters Laboratories (UL) suggests that AFCI/GFCI devices be tested every 30 days after installation to ensure they are properly working. Now the new Self-Test feature enables the Dual Function Circuit Breaker to automatically and continuously test itself to ensure that it is working properly. If it is detected that the device has been compromised, the device trips itself. This effortless system guarantees that only the best protection is given to your home at all times.

  • Provides both ground fault and arc fault circuit protection

  • LED trip indicators to help identify fault conditions

  • Autonomously and continuously tests itself for device malfunction

  • The National Electrical Code requires both Arc Fault and Ground Fault protection on kitchen and laundry circuits

  • Save time and money by combining two safety devices into one, using a Dual Function breaker provides cost savings compared to an AFCI breaker with GFCI receptacles

  • Trusted plug-on neutral connection

  • #14 - #8 AWG copper, #12 - #8 AWG aluminum wire range

  • 10,000 AIC rating

  • HACR and SWD rated
  • Type Circuit Breakers
  • Vendor Siemens
  • Saber's Item # 71223699 | Model # Q120DFNP
  • Barcode 804766906602
  • Dimensions Power Capacity 20-amp Width Measurement 1-in
  • Features Number of Poles 1
  • Specifications Single phase (120/240)
  • Weight 1 lb
  • Color/Finish Black
  • Voltage 120/240
  • Type Dual function AFCI/GFCI
  • AMPS 20-Amp
  • Returnable 10-Day
  • Warranty 1-year
  • Saber Sales Exclusive No
  • CA Residents Prop 65 Warning(s) No
