GE PowerMark Gold 125-Amp 12-Spaces 24-Circuit Outdoor Main Breaker Load Center (Value Pack)
Ships in 1-5 business days
This product is dispatched directly by the manufacturer. Please allow for additional processing.
Got questions?
Feel free to get in touch
Ask an expert
-

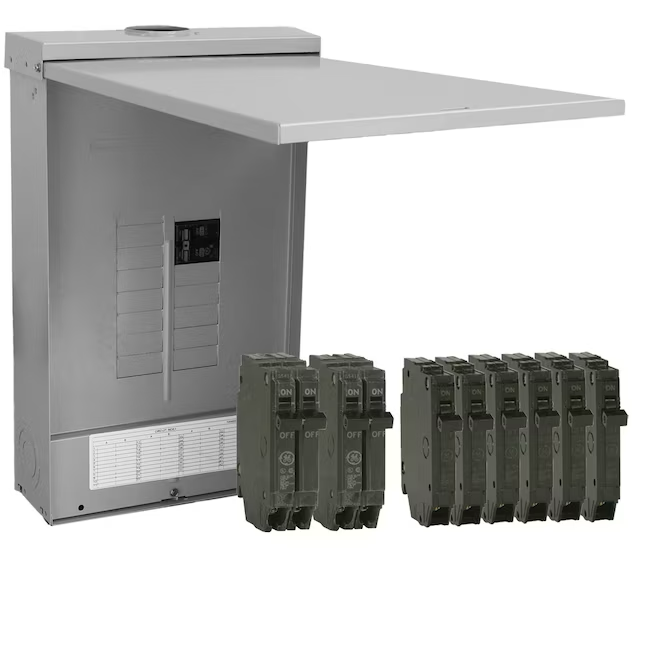

Value kit includes a PowerMark Gold 125 Amp main breaker outdoor circuit breaker panel, 6 20 Amp single pole, 1 30 Amp double pole, 1 50 Amp double pole THQP 1/2 in circuit breaker
-
Main breaker is factory installed
-

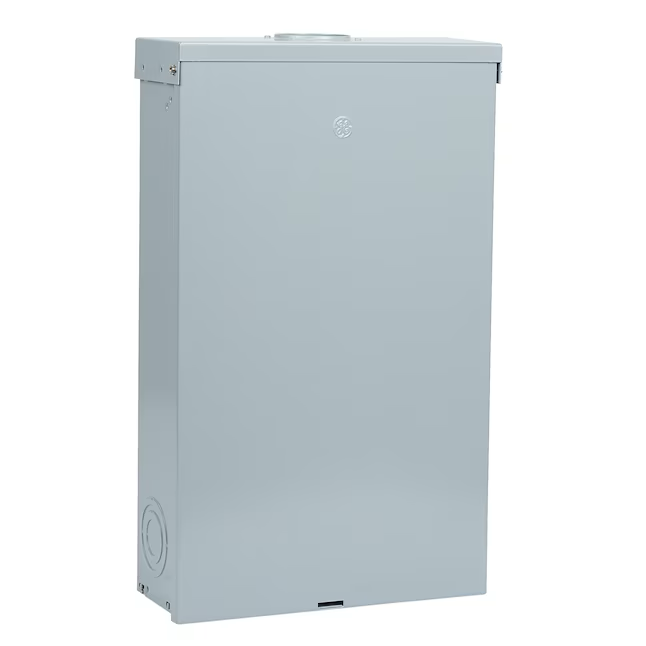

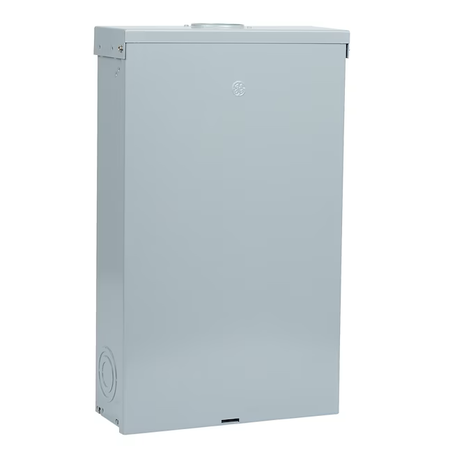

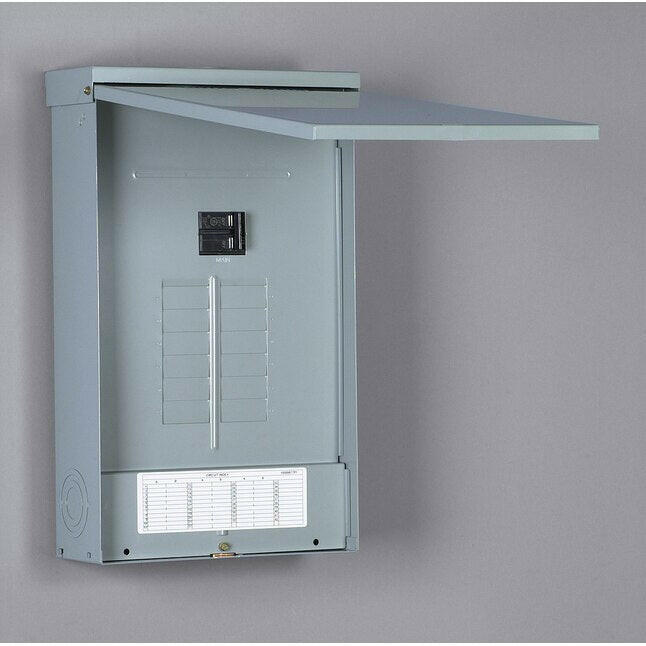

Galvanized box for rust resistance with a self-adjusting dead-front cover
-
Copper buss for increased conduction
-
Full-length neutral bars for faster and easier wiring and 100% split neutral holes on each side are rated for #14-4 wire
-
Single-phase, 3-wire, 120/240 VAC, 22,000 AIC rating
-
Compatible with GE THQL, THQP, GFCI and AFCI circuit breakers
-
ANSI certified and UL Listed
-
The warranty is one (1) year from first use or eighteen (18) months from delivery, whichever occurs first
- Type Breaker Boxes
- Vendor GE
- Saber's Item # 71223226 | Model # TM1212RCU1K

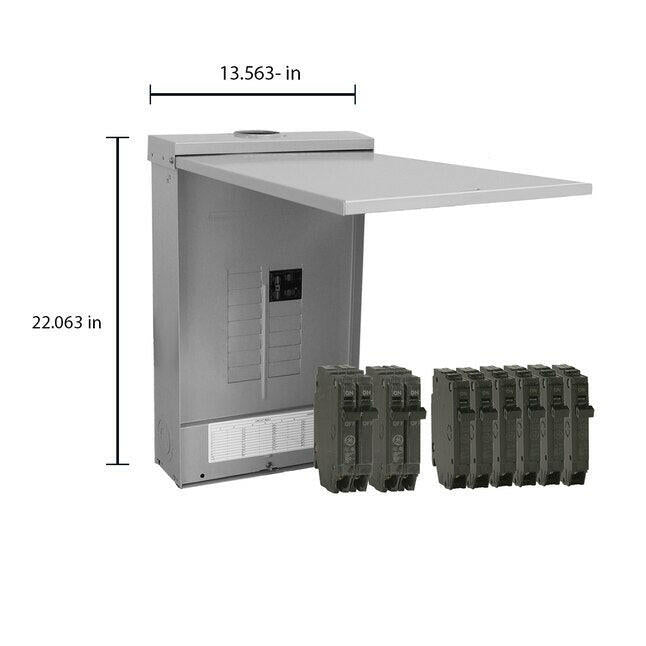

- Dimensions Depth (Inches) 5.375 Width (Inches) 13.563 Height (Inches) 22.063
- Features Value Pack Contents GE PowerMark Gold 125 Amp main breaker outdoor load center, 6 single pole 20 Amp 1/2-in, 1 double pole 30 Amp 1/2-in and 1 double pole 50 Amp 1/2-in circuit breakers
- Specifications Amperage 125 Orientation Over/Under Buss Bar Construction Copper Paintable Yes Circuits 24 Phase Type Single phase (120/240) Cover Included Yes Plug-On Neutral No Feed-Through Lugs No Usage Service entrance Ground Bar Installed No Use Location Outdoor Mounting Type Combination Value Pack Yes Number of Spaces 12
- Weight 5 lb
- Color/Finish Gray
- Style Breaker Box
- Returnable 30-Day
- Warranty 1-year limited
- Saber Sales Exclusive No
- CA Residents Prop 65 Warning(s) No
